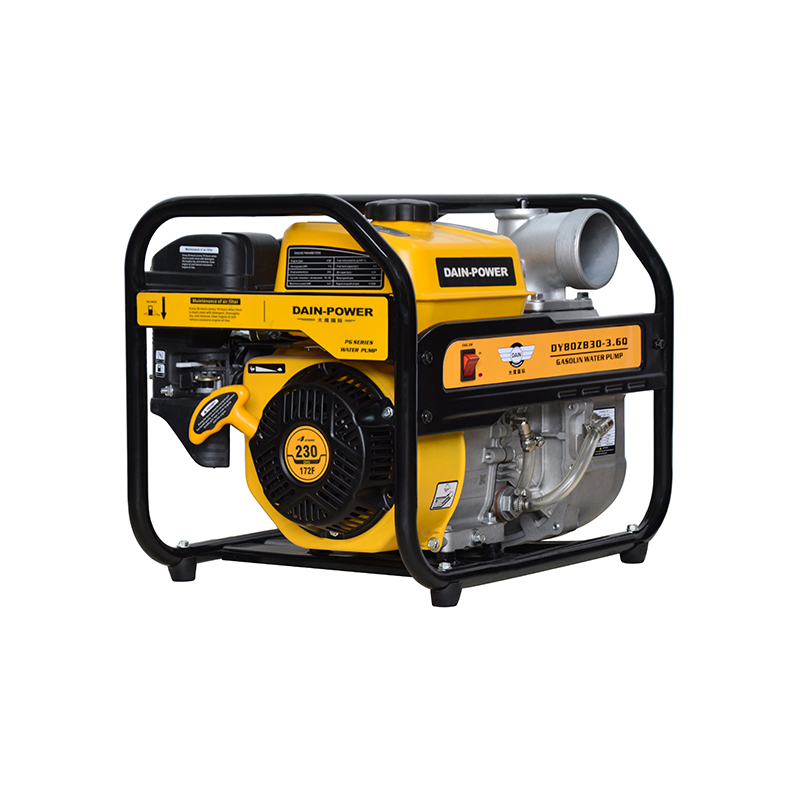

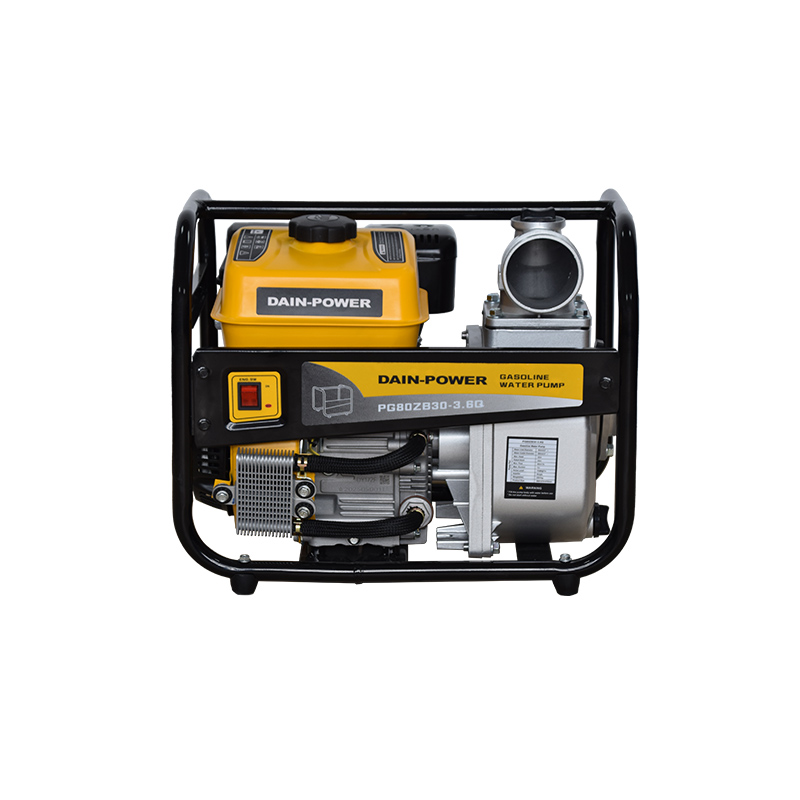

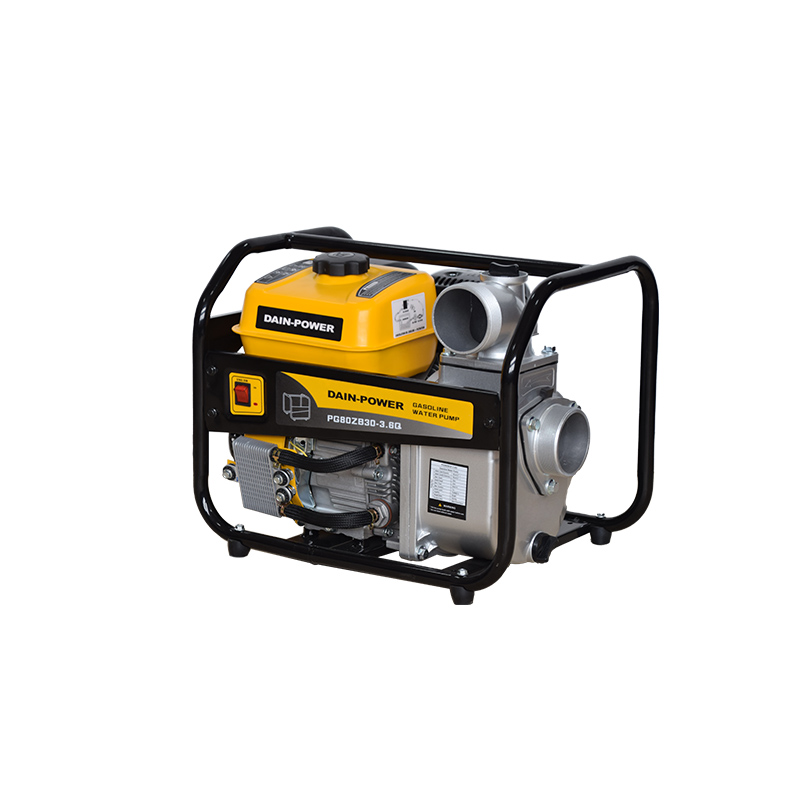

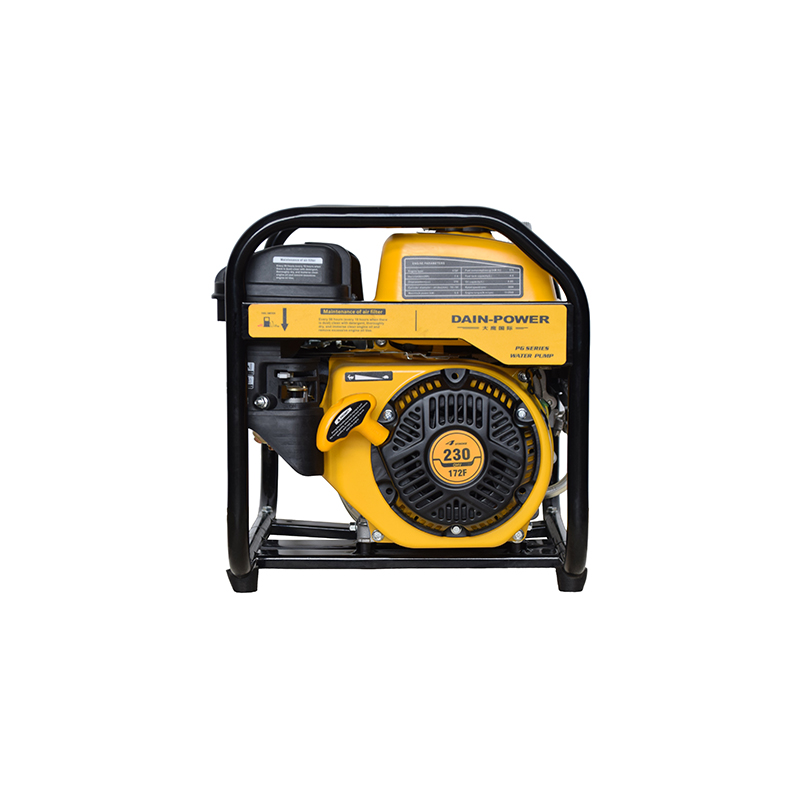

PG Model
DAIN
| Product Model | DY50ZB28-3.6Q | DY80ZB30-3.6Q | DY100ZB25-4.8Q (Small 4-inch) | DDY100ZB25-8.2Q (Large 4-inch) | PA150ZB22-8.8Q (6-inch) |
| Standard Model | 2-inch | 3-inch | 4-inch | 4-inch | 6-inch |
| Inlet Diameter (mm) | 2＂(50mm) | 3＂(80mm) | 4＂(100mm) | 4＂(100mm) | 6＂(150mm) |
| Outlet Diameter (mm) | 2＂(50mm) | 3＂(80mm) | 4＂(100mm) | 4＂(100mm) | 6＂(150mm) |
| Maximum Head (m) | 28 | 30 | 25 | 25 | 22 |
| Maximum Suction Lift (m) | 7 | 7 | 7 | 7 | 7 |
| Maximum Flow Rate (m³/h) | 36 | 60 | 65 | 90 | 135 |
| Engine Type | Overhead valve, single-cylinder, inclined forced air cooling, 4-stroke OHV25 | ||||
| Engine Model | 170FA | 170FA | 172FA | 190F | 192FB |
| Engine Displacement (cc) | 210 | 210 | 230 | 420 | 465 |
| IOB Power (kW) | 4 | 4 | 4.8 | 8.5 | 9.5 |
| Rated Speed (r/min) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Fuel Tank Capacity (L) | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Fuel Consumption (g/(kW·h)) | ≤375 | ≤375 | ≤370 | ≤370 | ≤370 |
| Theoretical Working Duration (h) | 3~3.5 | 3~3.5 | 2.5~3 | 2~2.5 | 2~2.5 |
| Oil Capacity (L) | 0.65 | 0.65 | 0.65 | 1.1 | 1.1 |
| Starting Method | Manual start / Electric start (optional) | ||||
| Random Tools Equipped | Standard configuration | ||||
| Product Dimensions (mm) | 500×375×410 | 500×375×410 | 500×385×440 | 630×510×570 | 760×540×690 |
| Packaging Dimensions (mm) | 510×385×425 | 510×385×425 | 510×395×455 | 640×520×585 | 780×560×720 |
| Net Weight/Gross Weight (kg) | 22/25 | 23/26 | 25/28 | 42.5/ | 66/73 |
| Quantity per 40ft High Cube Container | 834 | 834 | 645 | 324 | 180 |
