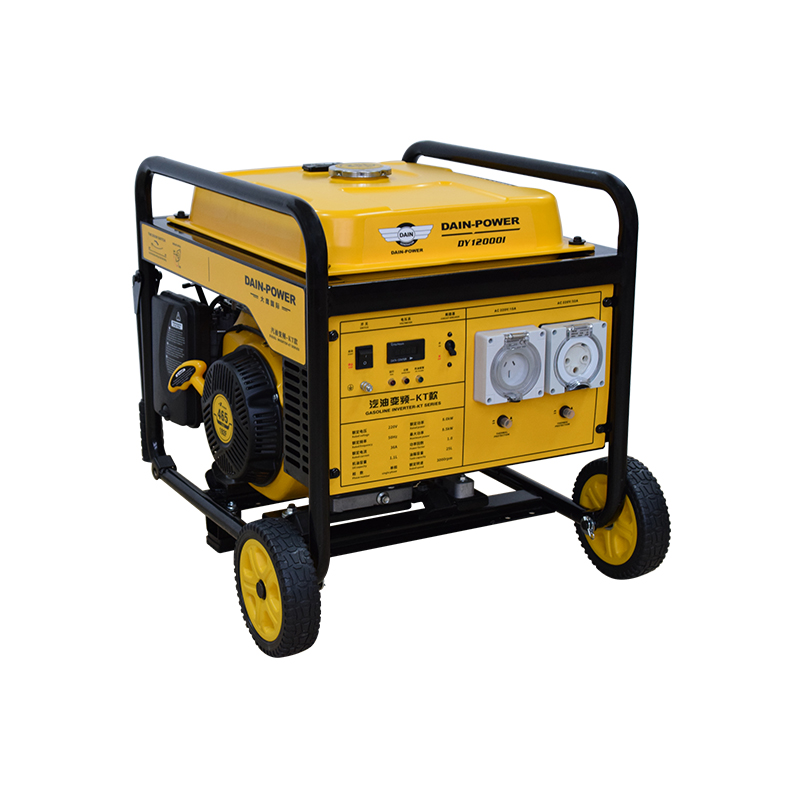

KT Model
DAIN
| Product Model | DYKT6500I | DYKT8500I | DYKT10000I | DYKT12000I | DYKT13000I | DYKT13500I | DYKT15500I | |
| Standard Model | 5.0kW | 7kW | 8.0kW | 8.5kW | 9kW | 10kW | 11kW | |
| Rated Voltage (V) | 230 | 230 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | |
| Rated Output Power (kW) COP | 5 | 6.5 | 8 | 8.5 | 9 | 10 | 11 | |
| Maximum Output Power (kW) | 5.5 | 7 | 8.5 | 9 | 9.5 | 10.5 | 11.5 | |
| Rated Current (A) | 21.5 | 28 | 34.5/14 | 36.5/15 | 39/16 | 43/18 | 47.5/19.5 | |
| Rated Frequency (Hz) | 50/60Hz (Optional) | |||||||
| Power Factor | 1 | 1.0/0.8 | ||||||
| Fuel Tank Capacity (L) | 25 | |||||||
| Theoretical Operating Time (h) | 6.5~7 | 6.5~7 | 6~6.5 | 5.5~6 | 5.5~6 | 4.5~5 | 4~4.5 | |
| Operating Altitude (m) | ≤1000 | |||||||
| Operating Ambient Temperature (℃) | ≤40 | |||||||
| Phase | Single Phase | Single Phase / Three Phase / Equal Power | ||||||
| Engine Model | 190F | 190F | 192FA | 192FB | 192FB | 194F | 196F | |
| Engine Displacement (cc) | 420 | 420 | 460 | 465 | 465 | 499 | 520 | |
| Bore × Stroke (mm) | 90×66 | 90×66 | 92×69 | 92×70 | 92×70 | 94×72 | 96×72 | |
| Rated Speed (r/min) | 3000/3600rpm (Optional) | |||||||
| Ignition System | Contactless Transistor Ignition | |||||||
| Starting Method | Recoil Start / Electric Start | |||||||
| Cooling System | Forced Air Cooling | |||||||
| Engine oil Capacity (L) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.2 | 1.2 | |
| Fuel Consumption (g/(kW·h)) | ≤365 | |||||||
| Accessory Configuration | Wheels + Handle (Optional) | |||||||
| Product Dimensions (mm) | 660×530×550 | |||||||
| Packaging Dimensions (mm) | 670×540×565 | |||||||
| Net Weight/Gross Weight (kg) | Manual Start | 86/89 | 88/90.6 | 89.9/92.7 | 92/95 | |||
| Electric Start | - | |||||||
| Weight with Wheels & Handle | 3 | |||||||
| Quantity per 40ft High Cube Container | 300 | |||||||
