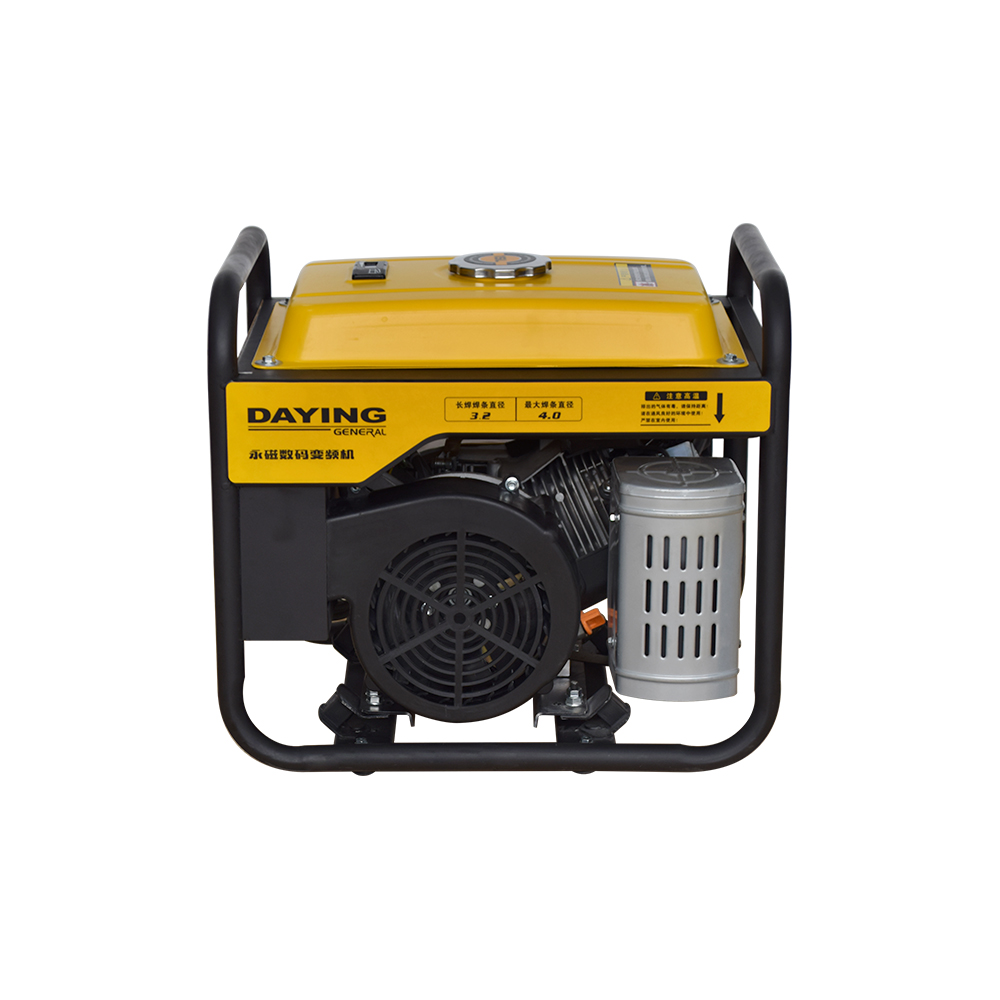

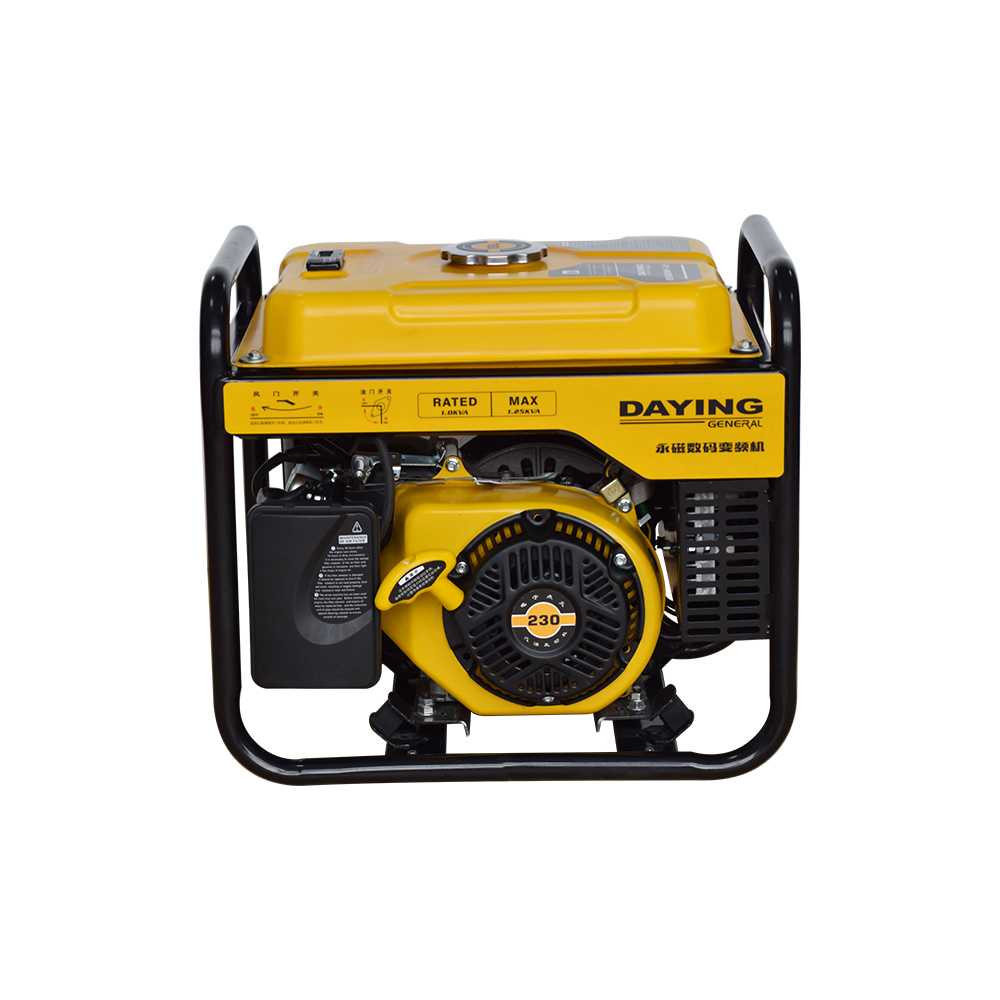

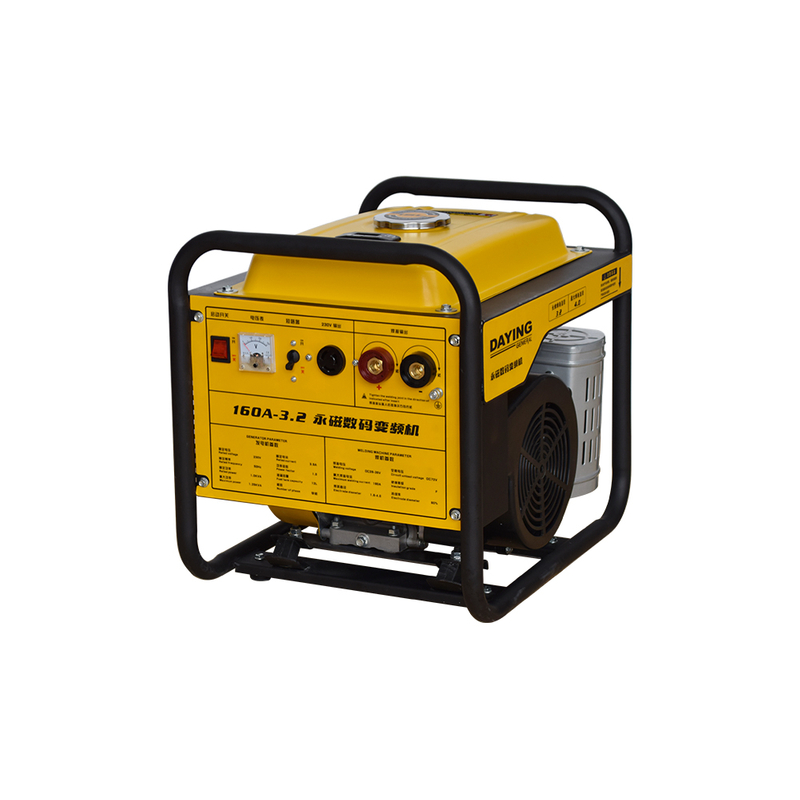

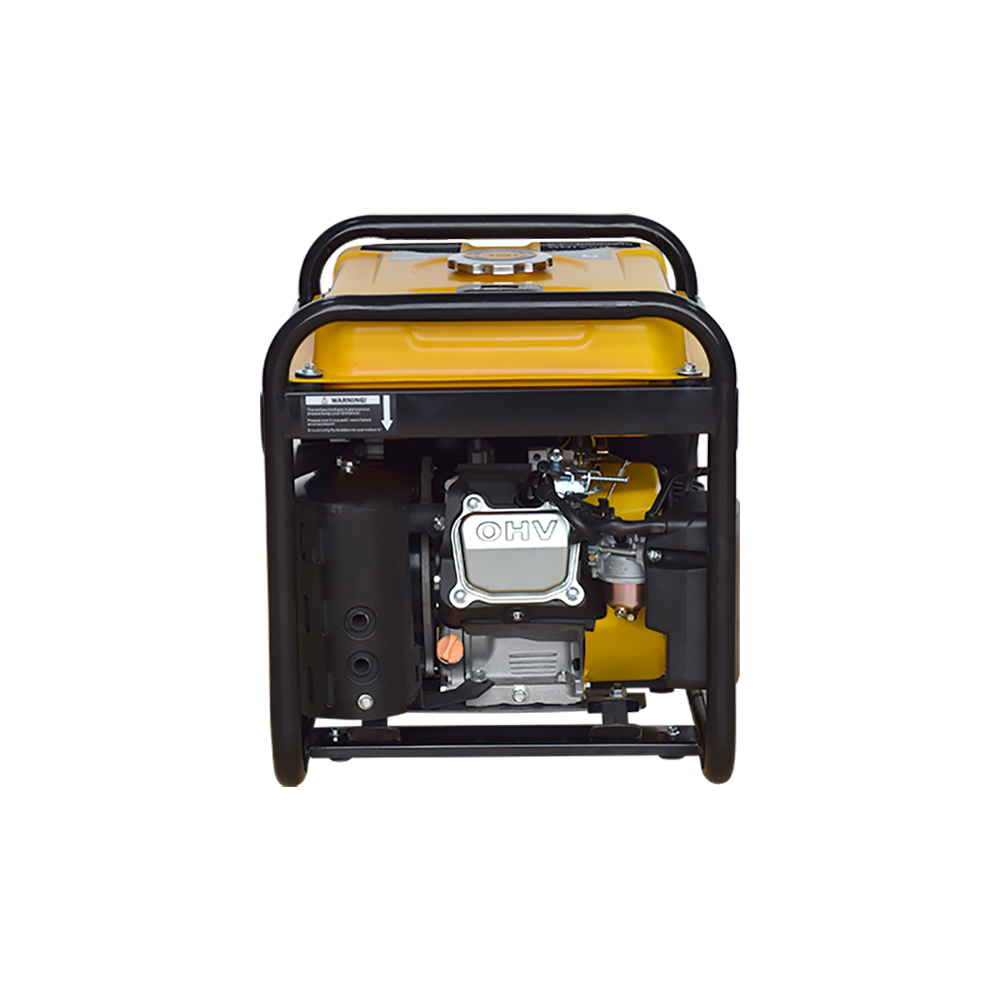

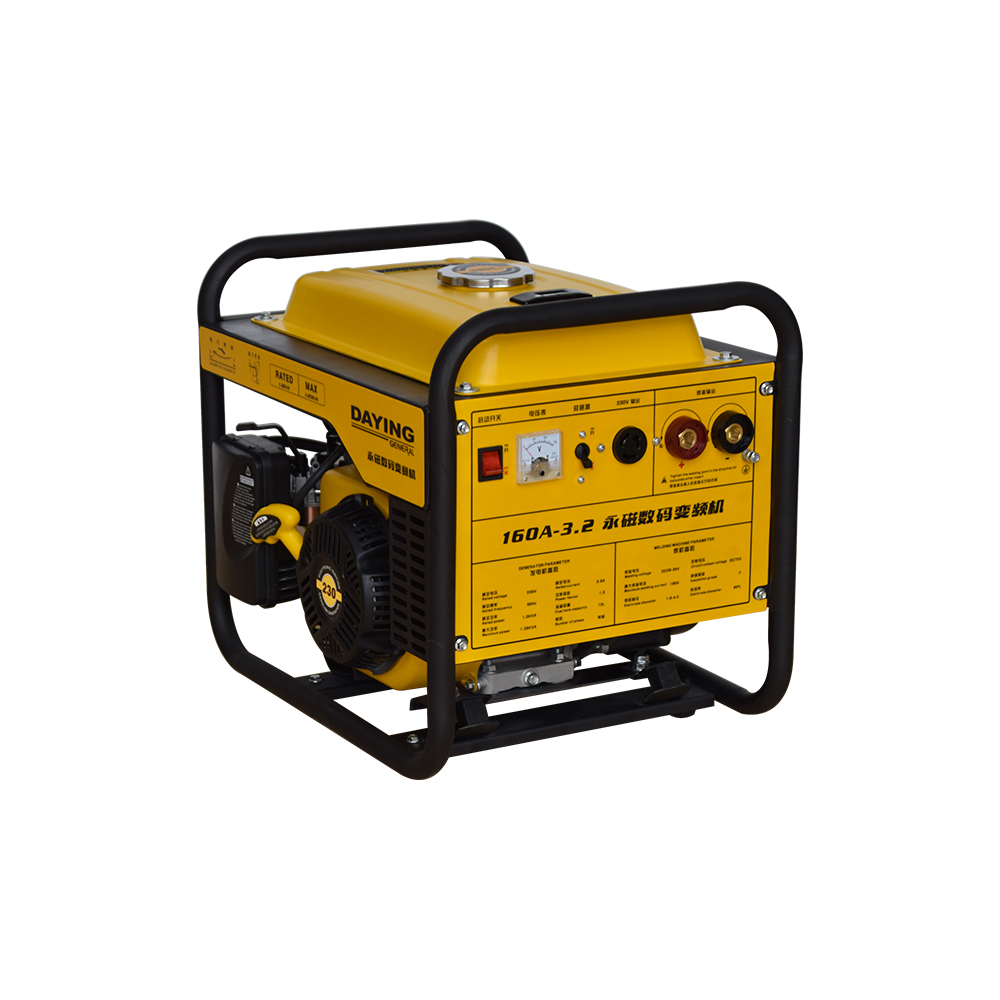

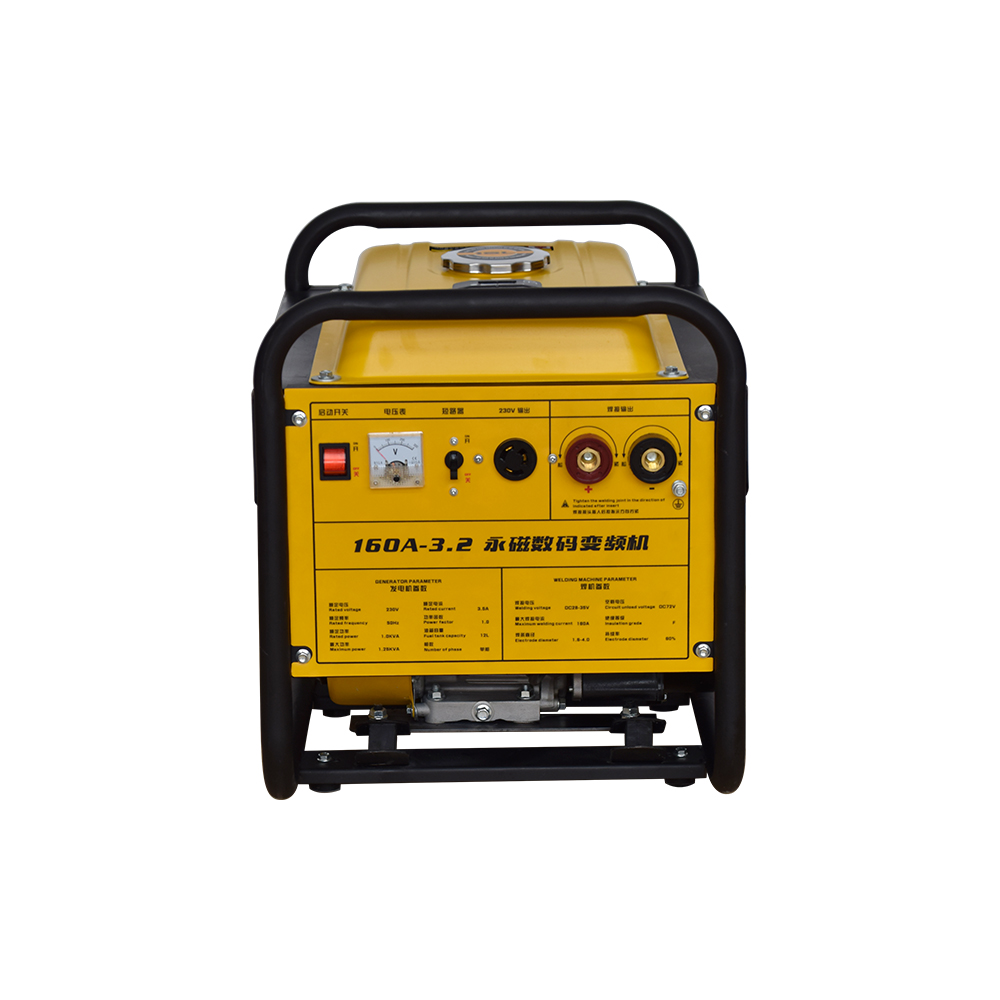

KT Model
DAIN
| Product Model | DY160A-3.2A | DY160A-3.2B | DY160A-3.2C | DY160A-3.2D | DY160A-3.2-506 | |
| Standard Model | DY160A-3.2A | DY160A-3.2B | DY160A-3.2C | DY160A-3.2D | DY160A-3.2-506 | |
| Welding Electrode Diameter (mm) | 1.6-3.2mm | 1.6-3.2mm | 1.6-3.2mm | 1.6-3.2mm | 1.6-3.2 (506) | |
| Welding Current | 60-150A | |||||
| Current Adjustment Method | Fixed/Manual Rotary Adjustment | |||||
| No-Load Voltage (V) | 50-60 | |||||
| Load Voltage (V) | 25-35 | |||||
| Duty Cycle | 60% | |||||
| Insulation Class | F | |||||
| Rated Voltage (V) | 230 | - | ||||
| Rated Frequency (Hz) | 50/60Hz (Optional) | - | ||||
| Rated Output Power (kW) COP | 1 | 2 | 2.5 | 3 | - | |
| Maximum Output Power (kW) | 1.2 | 2.3 | 2.8 | 3.3 | - | |
| Rated Current (A) | 4.3 | 8.5 | 10.5 | 13 | - | |
| Power Factor | 1 | - | ||||
| Fuel Tank Capacity (L) | 14 | |||||
| Theoretical Operating Time (h) | 5~5.5 | - | ||||
| Operating Altitude (m) | ≤1000m | |||||
| Operating Ambient Temperature (℃) | ≤40℃ | |||||
| Phase | Single Phase | / | ||||
| Engine Model | 170FB | 170FB | 170FB | 172FA | 172FA | |
| Engine Displacement (cc) | 225 | 225 | 225 | 230 | 230 | |
| Bore × Stroke (mm) | 70×58 | 70×58 | 70×58 | 72×58 | 72×58 | |
| Rated Speed (r/min) | 3600 | |||||
| Ignition System | Contactless Transistor Ignition | |||||
| Starting Method | Recoil Start | |||||
| Cooling System | Forced Air Cooling | |||||
| Engine oil Capacity (L) | 0.65 | |||||
| Fuel Consumption (g/(kW·h)) | ≤375 | |||||
| Accessory Configuration | Wheels + Handle (Optional) | |||||
| Product Dimensions (mm) | 520×410×460 | |||||
| Packaging Dimensions (mm) | 530×420×475 | |||||
| Net Weight/Gross Weight (kg) | Manual Start | 32/34 | 32/34 | 33/35 | 35/37 | 33/35 |
| Electric Start | - | |||||
| Weight with Wheels & Handle | 2 | |||||
| Quantity per 40ft High Cube Container | 585 | |||||
