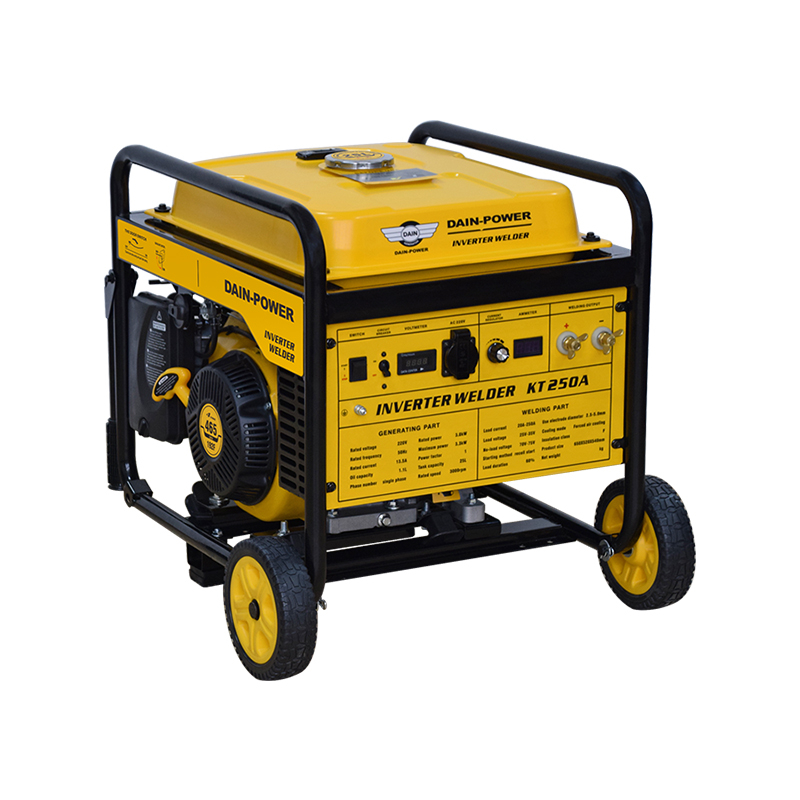

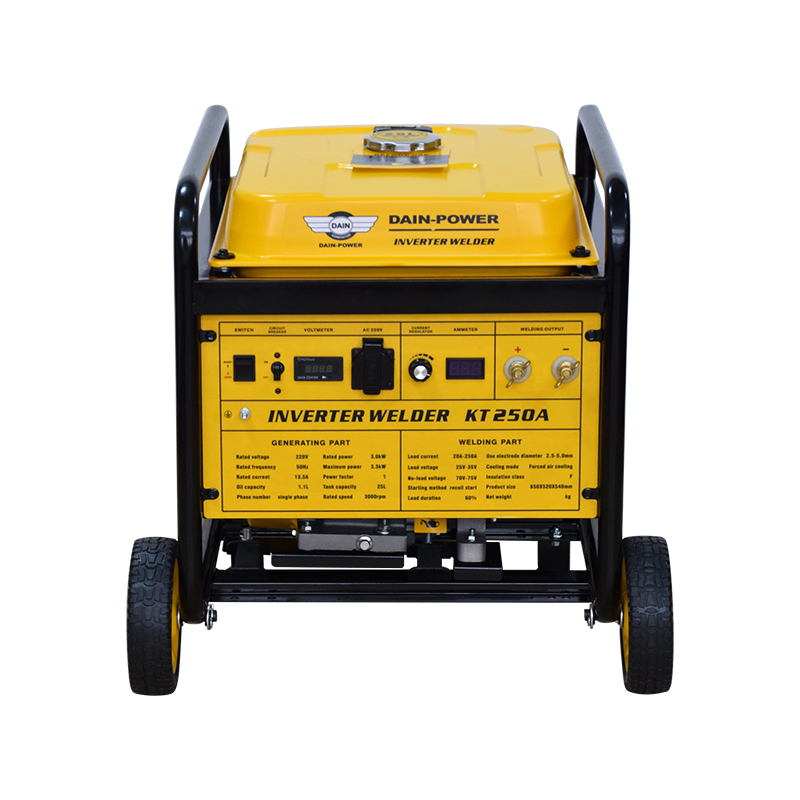

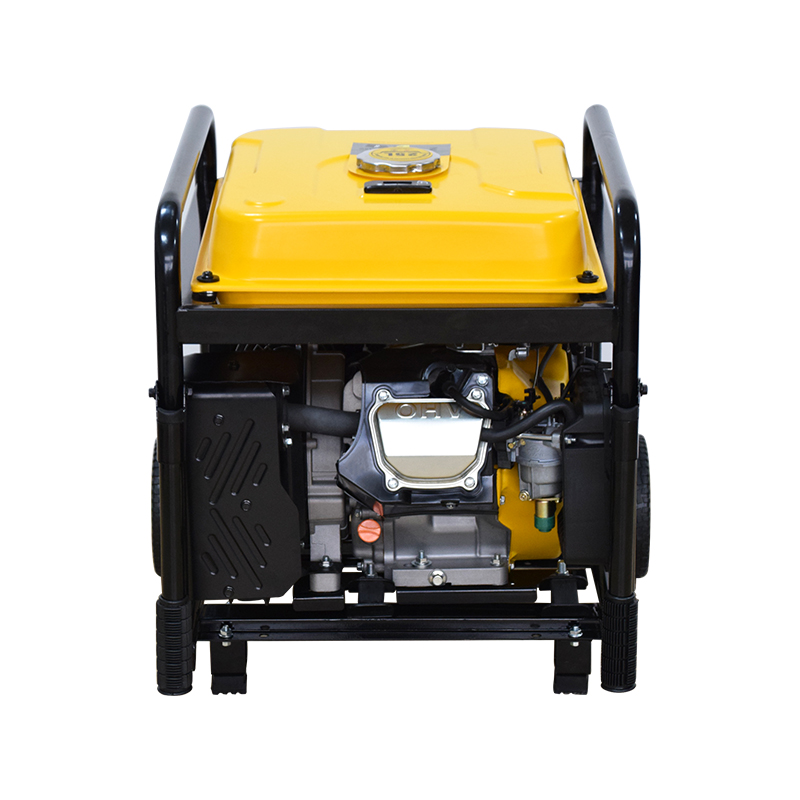

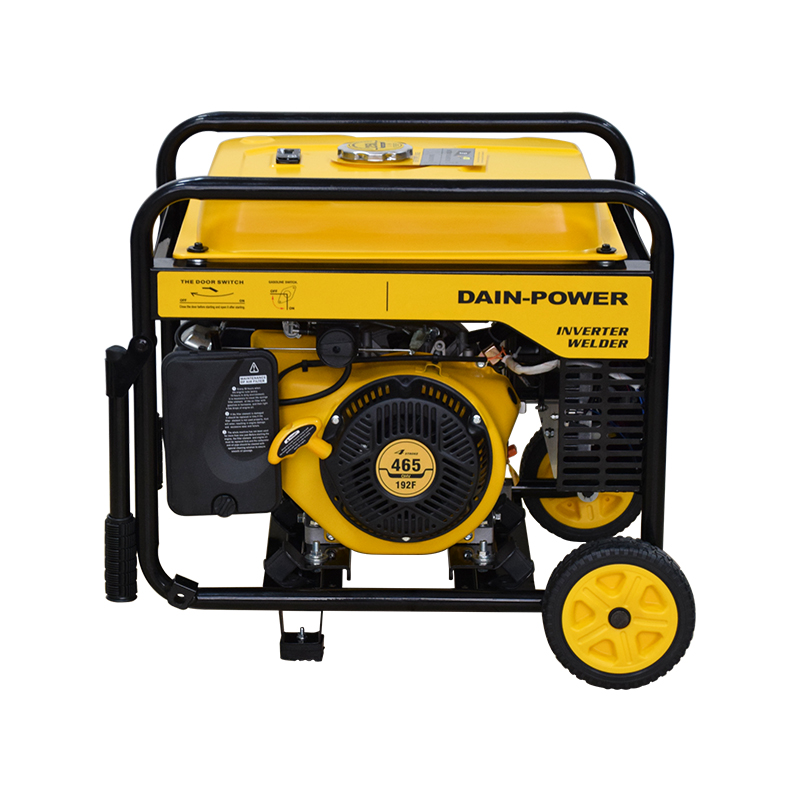

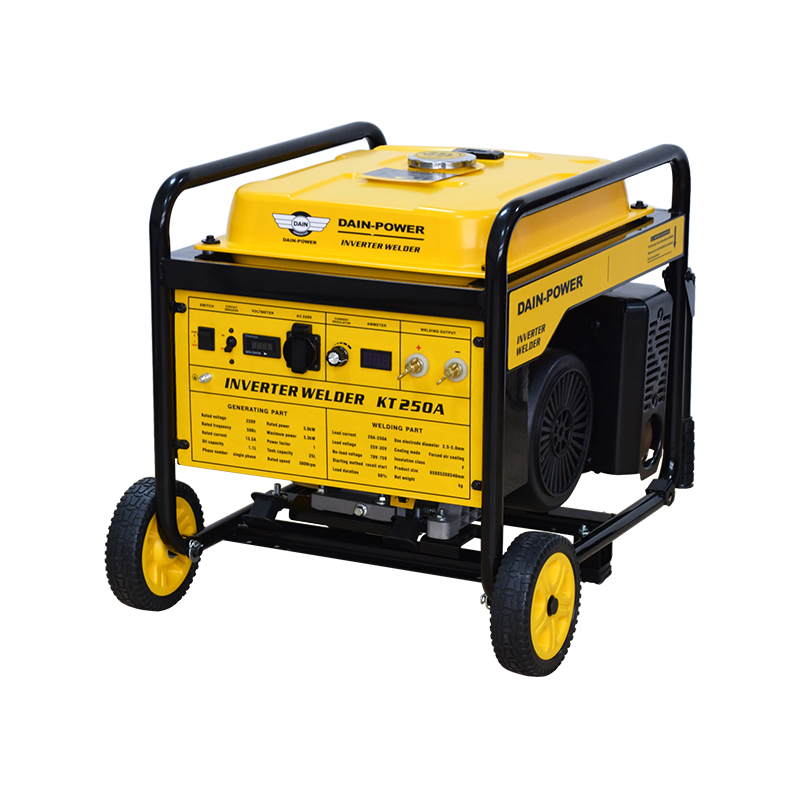

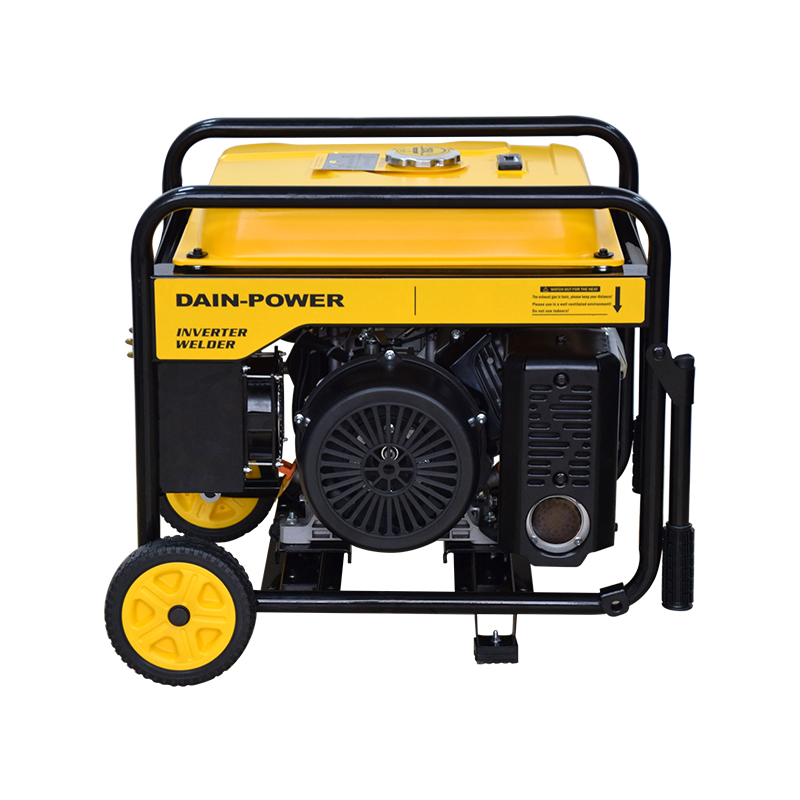

KT Model
DAIN
| Product Model | DY190A-3.2 | DY230A-4.0 | DY270A-5.0 | |
| Standard Model | DY190A-3.2 | DY230A-4.0 | DY270A-5.0 | |
| Welding Electrode Diameter (mm) | 1.6-4.0mm (Continuous Welding for 4.0mm) | 1.6-5.0mm (Continuous Welding for 4.0mm) | 1.6-6.0mm (Continuous Welding for 5.0mm) | |
| Current Adjustment Range | 60-180A | 60-230A | 60-270A | |
| Current Adjustment Method | Manual Rotary Adjustment | |||
| No-Load Voltage (V) | 50-60 | |||
| Load Voltage (V) | 25-35 | |||
| Duty Cycle | 60% | |||
| Insulation Class | F | |||
| Rated Voltage (V) | 230 | 230 | 220 | |
| Rated Output Power (kW) COP | 3 | 2 | 1 | |
| Maximum Output Power (kW) | 3.3 | 2.3 | 1.2 | |
| Rated Current (A) | 13 | 8.5 | 4.3 | |
| Rated Frequency (Hz) | 50/60Hz (Optional) | |||
| Power Factor | 1 | |||
| Fuel Tank Capacity (L) | 25 | |||
| Theoretical Operating Time (h) | 6.5~7 | 5.5~6 | 5.5~6 | |
| Operating Altitude (m) | ≤1000m | |||
| Operating Ambient Temperature (℃) | ≤40℃ | |||
| Phase | Single Phase | |||
| Engine Model | 190F | 192FB | 192FB | |
| Engine Displacement (cc) | 420 | 465 | 465 | |
| Bore × Stroke (mm) | 90×66 | 92×70 | 92×70 | |
| Rated Speed (r/min) | 3600 | |||
| Ignition System | Contactless Transistor Ignition | |||
| Starting Method | Recoil Start / Electric Start (Optional) | |||
| Cooling System | Forced Air Cooling | |||
| Engine oil Capacity (L) | 1.1 | |||
| Fuel Consumption (g/(kW·h)) | ≤365 | |||
| Accessory Configuration | Wheels (Optional) | |||
| Product Dimensions (mm) | 660×530×550 | |||
| Packaging Dimensions (mm) | 670×540×565 | |||
| Net Weight/Gross Weight (kg) | Manual Start | 64.2/69.3 | ||
| Electric Start | - | |||
| Weight with Wheels & Handle | 3 | |||
| Quantity per 40ft High Cube Container | 300 | |||
