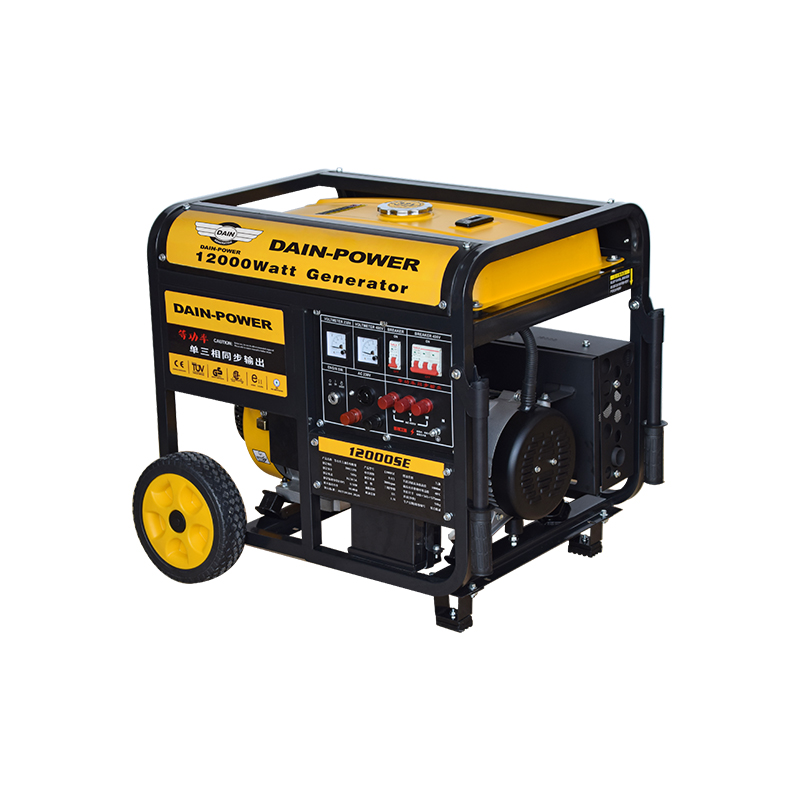

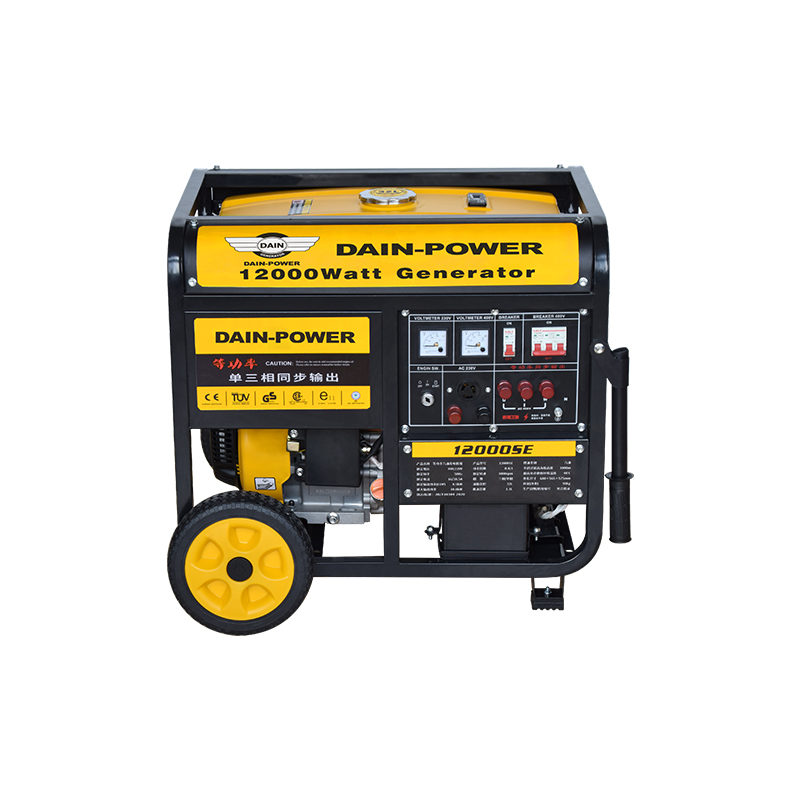

KT Model
DAIN
| Product Model | DYKT10000E | DYKT10000E/SE | DYKT12000E | DYKT12000E/SE | |
| Standard Model | 8.0kW | 9.0kW | |||
| Rated Voltage (V) | 220 | 220/380 | 220 | 220/380 | |
| Rated Output Power (kW) COP | 8 | 8.5 | |||
| Maximum Output Power (kW) | 8.5 | 9 | |||
| Rated Current (A) | 36 | 36/15 | 38.5 | 38.5/16 | |
| Rated Frequency (Hz) | 50/60Hz (Optional) | ||||
| Power Factor | 1.0/0.8 | ||||
| Fuel Tank Capacity (L) | 32 | ||||
| Theoretical Operating Time (h) | 5.5~6 | 5.5~6 | 4.5~5 | 4.5~5 | |
| Operating Altitude (m) | ≤1000 | ||||
| Operating Ambient Temperature (℃) | ≤40 | ||||
| Phase | Single Phase / Three Phase / Equal Power with Dual Voltage Integration (Optional) | ||||
| Engine Model | 192FB | 194F | |||
| Engine Displacement (cc) | 465 | 499 | |||
| Bore × Stroke (mm) | 92×70 | 94×72 | |||
| Rated Speed (r/min) | 3000/3600rpm (Optional) | ||||
| Ignition System | Contactless Transistor Ignition | ||||
| Starting Method | Recoil Start / Electric Start (Optional) | ||||
| Cooling System | Forced Air Cooling | ||||
| Engine oil Capacity (L) | 1.1 | 1.2 | |||
| Fuel Consumption (g/(kW·h)) | ≤365 | ||||
| Accessory Configuration | Wheels + Handle (Optional) | ||||
| Product Dimensions (mm) | 680×565×575 | ||||
| Packaging Dimensions (mm) | 690×575×590 | ||||
| Net Weight/Gross Weight (kg) | Manual Start | - | |||
| Electric Start | 88/90 | 93/95 | 98/100 | 103/105 | |
| Weight with Wheels & Handle | 3 | ||||
| Quantity per 40ft High Cube Container | 272 | ||||
