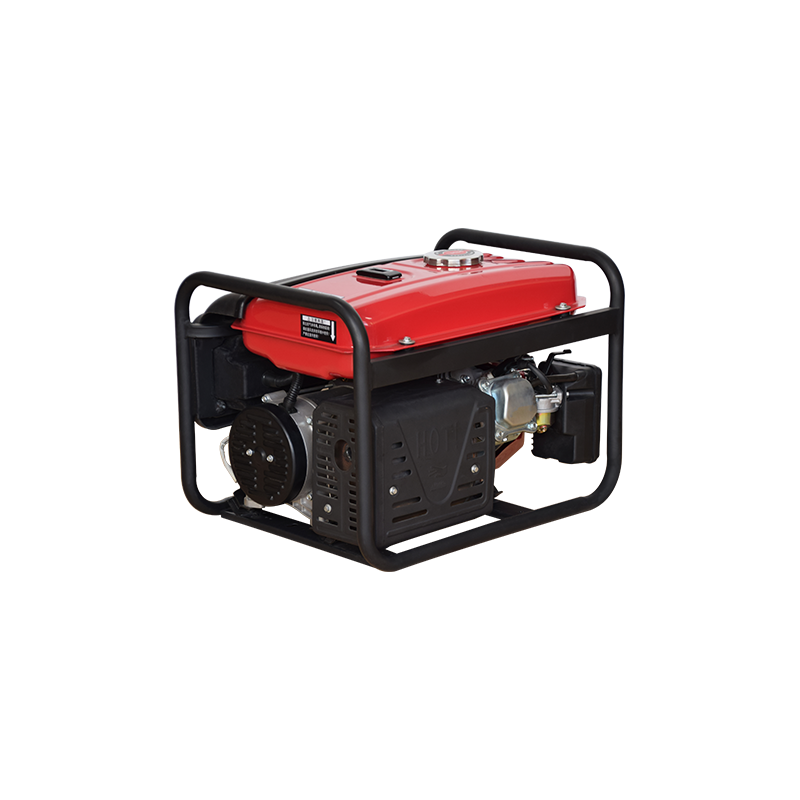

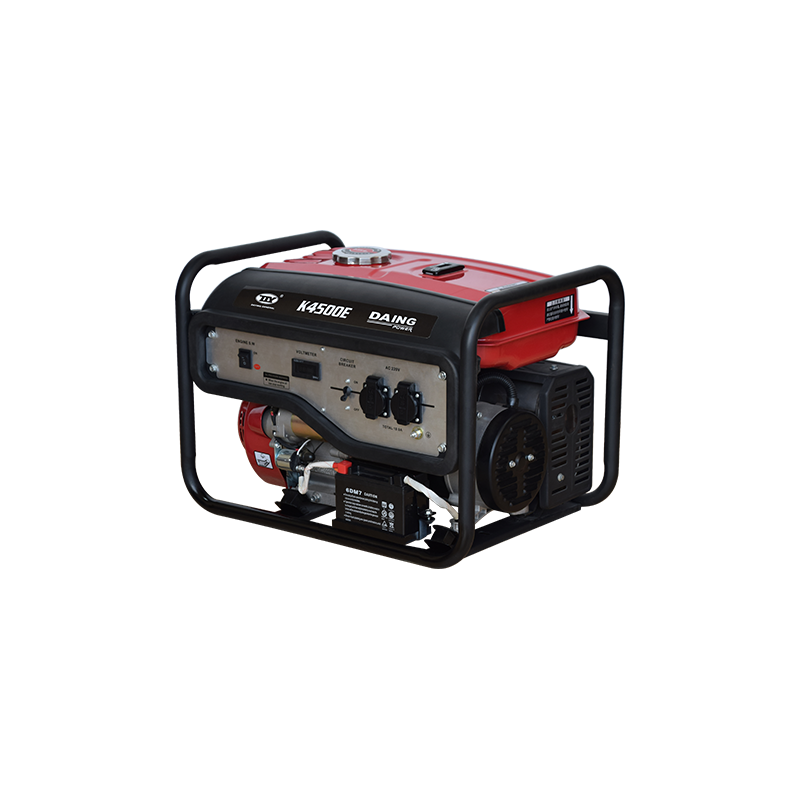

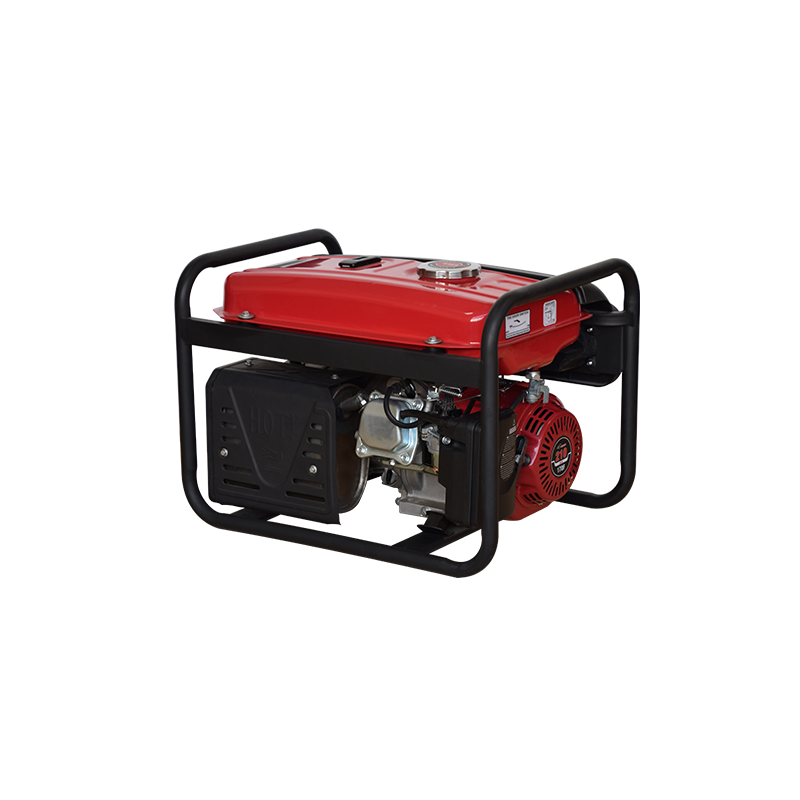

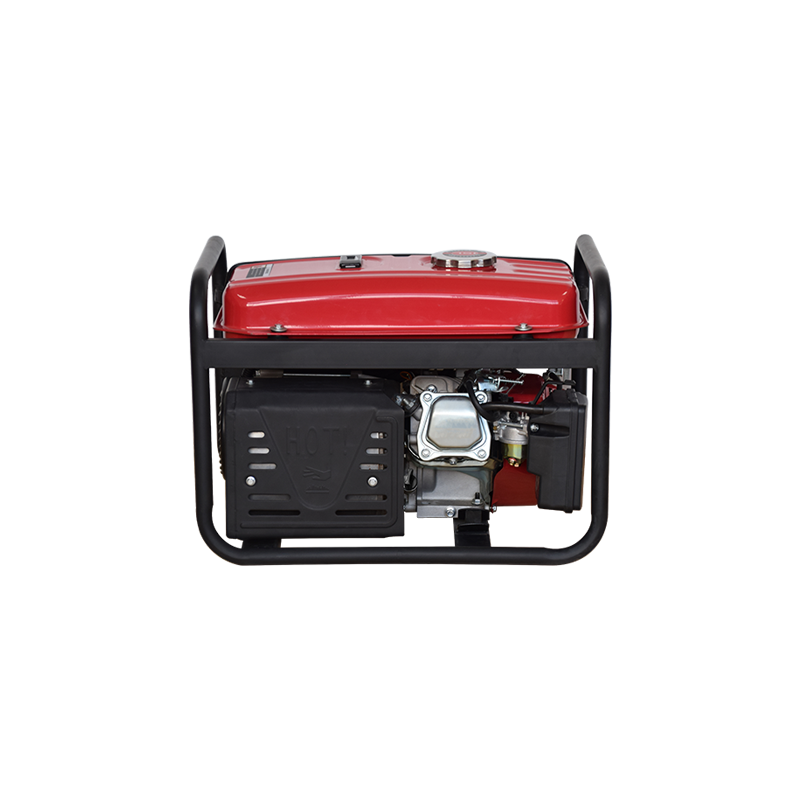

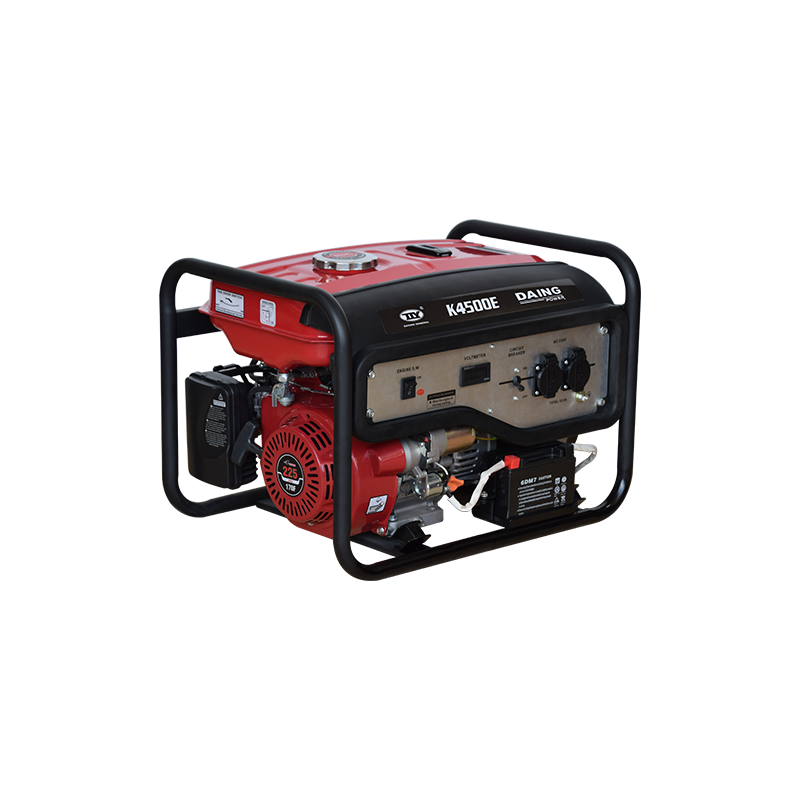

K model
DAIN
| Product Model | DYK2500 | DYK3000 | DYK4000 | DYK4500 | |
| Standard Model | 2.0kW | 2.5kW | 3.0kW | 3.5kW | |
| Rated Voltage (V) | 220 | ||||
| Rated Output Power (kW) COP | 2 | 2.5 | 2.8 | 3.2 | |
| Maximum Output Power (kW) | 2.3 | 2.8 | 3 | 3.5 | |
| Rated Current (A) | 9 | 11 | 12.5 | 14.5 | |
| Rated Frequency (Hz) | 50/60Hz selectable | ||||
| Power Factor | 1 | ||||
| Fuel Tank Capacity (L) | 15 | ||||
| Theoretical Operating Time (h) | 5.5~6 | 5.5~6 | 5.5~6 | 5~5.5 | |
| Operating Altitude (m) | ≤1000m | ||||
| Operating Ambient Temperature (℃) | ≤40℃ | ||||
| Number of Phases | Single-phase | ||||
| Engine Model | 170FA | 170FA | 170FA | 170FB | |
| Engine Displacement (cc) | 210 | 210 | 210 | 225 | |
| Bore × Stroke (mm) | 70×55 | 70×55 | 70×55 | 70×58 | |
| Rated Speed (r/min) | 3000/3600rpm selectable | ||||
| Combustion Method | Contactless Transistor Ignition | ||||
| Starting Method | Manual start/Electric start optional | ||||
| Cooling Method | Forced air cooling | ||||
| Engine oil Capacity (L) | 0.65 | ||||
| Fuel Consumption (g/(kW·h)) | ≤370 | ||||
| Accessory Configuration | Wheels + Armrests (optional) | ||||
| Product Dimensions (mm) | 590×445×425 | ||||
| Packaging Dimensions (mm) | 600×455×445 | ||||
| Net Weight/Gross Weight (kg) | Manual Start | 37/39 | 39/41 | 42/44 | 45/47 |
| Electric Start | 39/41 | 41/43 | 45/47 | 48/50 | |
| Weight with Wheels & Handle | 2 | ||||
| Quantity per 40ft High Cube Container | 586 | ||||
