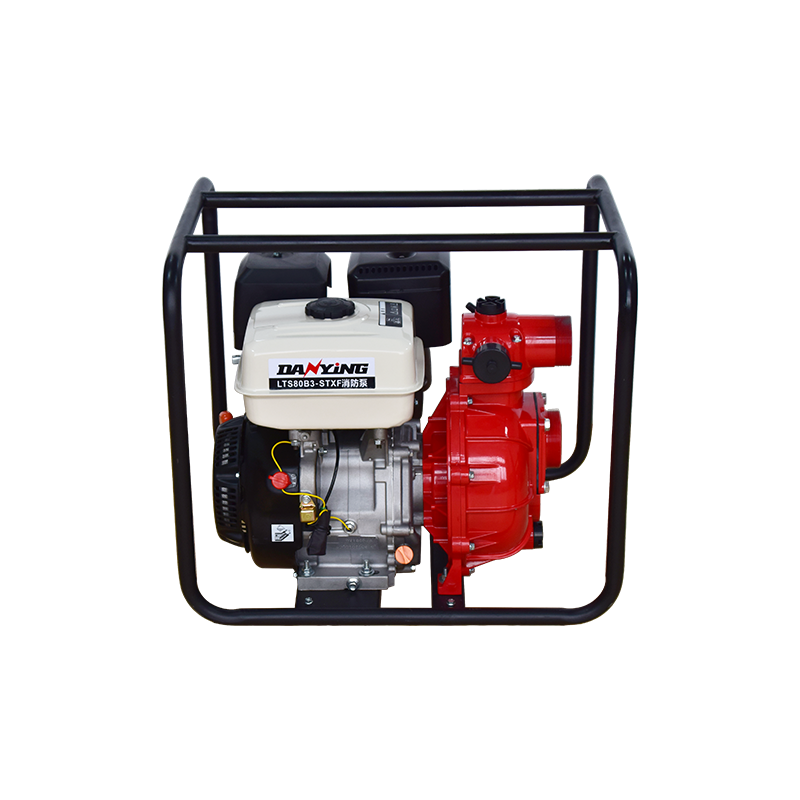

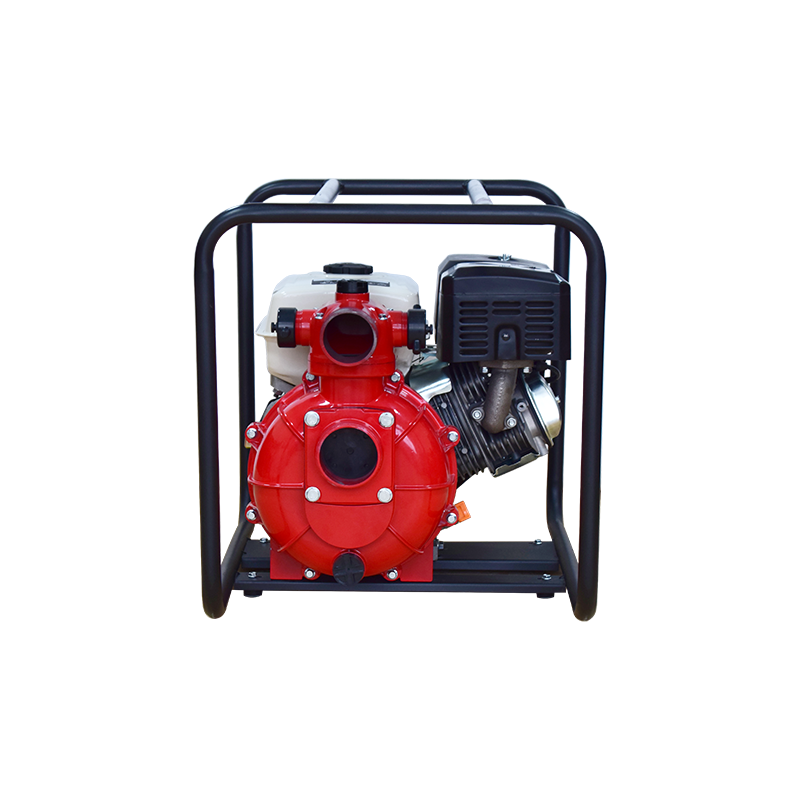

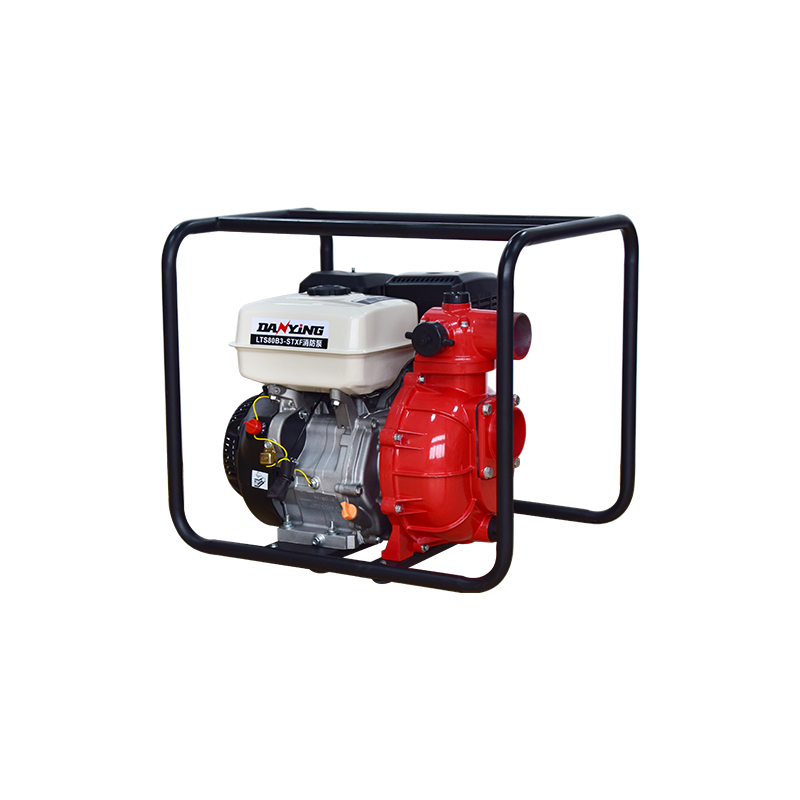

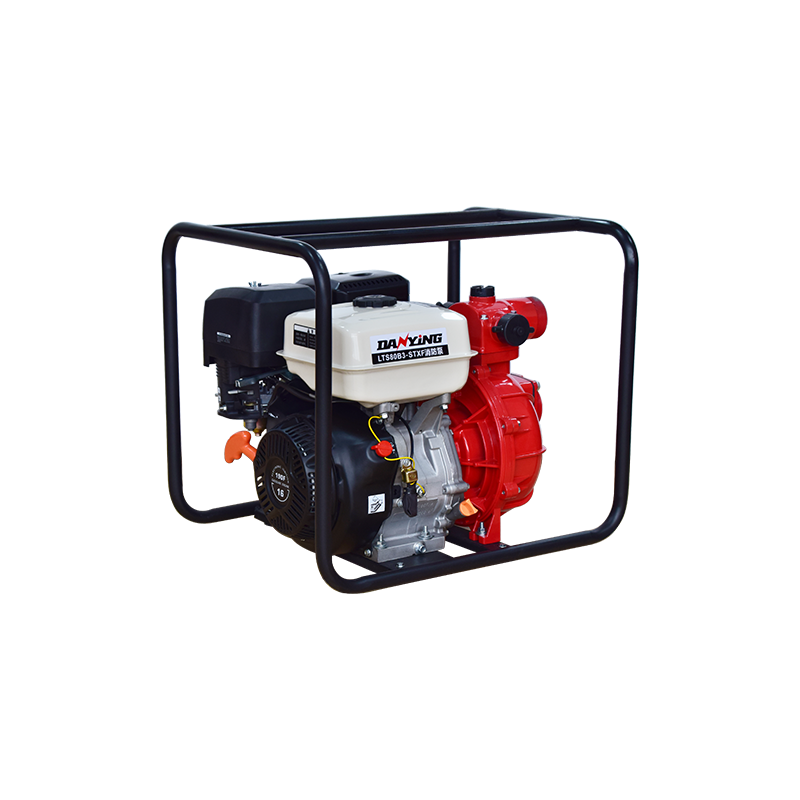

H Model Honda
DAIN
| Product Model | 50ZB35-3.3C | 80ZB15-3.3C | 100ZB25-6.6C | 150ZB20-7.6C |
| Standard Model | 2 inches | 3 inches | 4 inches | 6 inches |
| Inlet Diameter (mm) | 2＂(50mm) | 3＂(80mm) | 4＂(100mm) | 6＂(150mm) |
| Outlet Diameter (mm) | 2＂(50mm) | 3＂(80mm) | 4＂(100mm) | 6＂(150mm) |
| Maximum Head (m) | 38 | 22 | 20 | 22 |
| Maximum Suction Lift (m) | 5 | 4 | 4 | 4.5 |
| Maximum Flow Rate (m³/h) | 18 | 45 | 80 | 140 |
| Engine Type | Overhead valve, single cylinder, inclined forced air cooling, 4-stroke OHV25 | |||
| Engine Model | CF173F | C1F73F | CF188FE | CF192FE |
| Engine Displacement (cc) | 247 | 247 | 456 | 499 |
| Rated Speed (r/min) | 3600 | 3600 | 3600 | 3600 |
| Maximum Power (kW) | 5.3 | 5.3 | 6.9 | 8.6 |
| Fuel Tank Capacity (L) | 2.5 | 2.5 | 5.5 | 5.5 |
| Fuel Consumption (g/(kW·h)) | ≤280 | ≤280 | ≤280 | ≤280 |
| Oil Capacity (L) | 0.75 | 0.75 | 1.65 | 1.65 |
| Starting Method | Manual start / Electric start (optional) | |||
| Random Tools Equipped | Standard configuration | |||
| Product Dimensions (mm) | 585×450×550 | 585×450×550 | 650×480×600 | 765×570×805 |
| Packaging Dimensions (mm) | 595×460×565 | 595×460×565 | 660×490×615 | 775×580×820 |
| Net Weight/Gross Weight (kg) | 35.5/38.5 | 38.5/41.5 | 64/66 | 102/105 |
| Quantity per 40ft High Cube Container | 400 | 400 | 336 | 183 |
