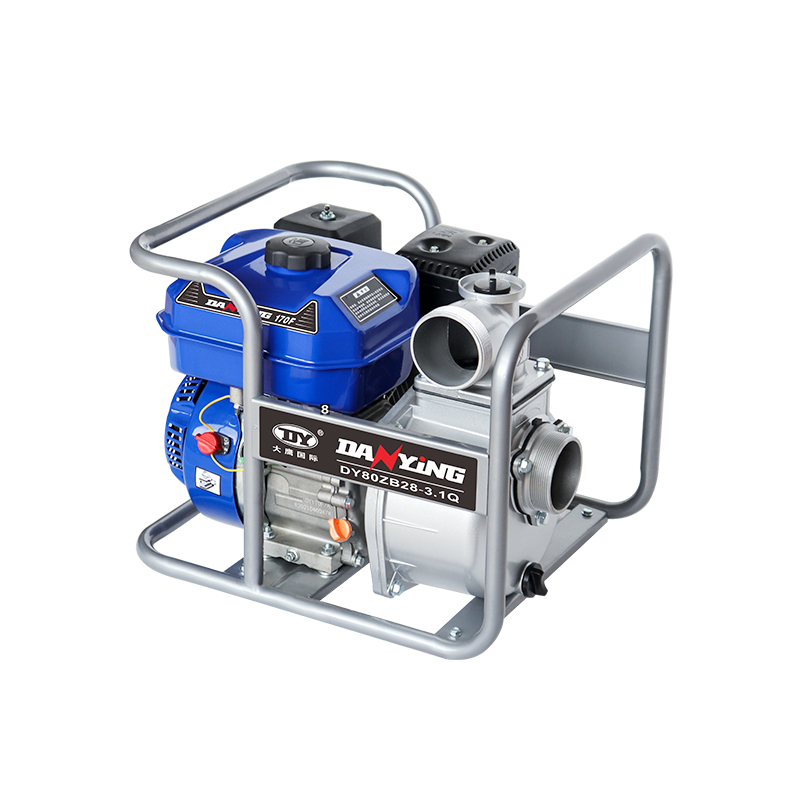

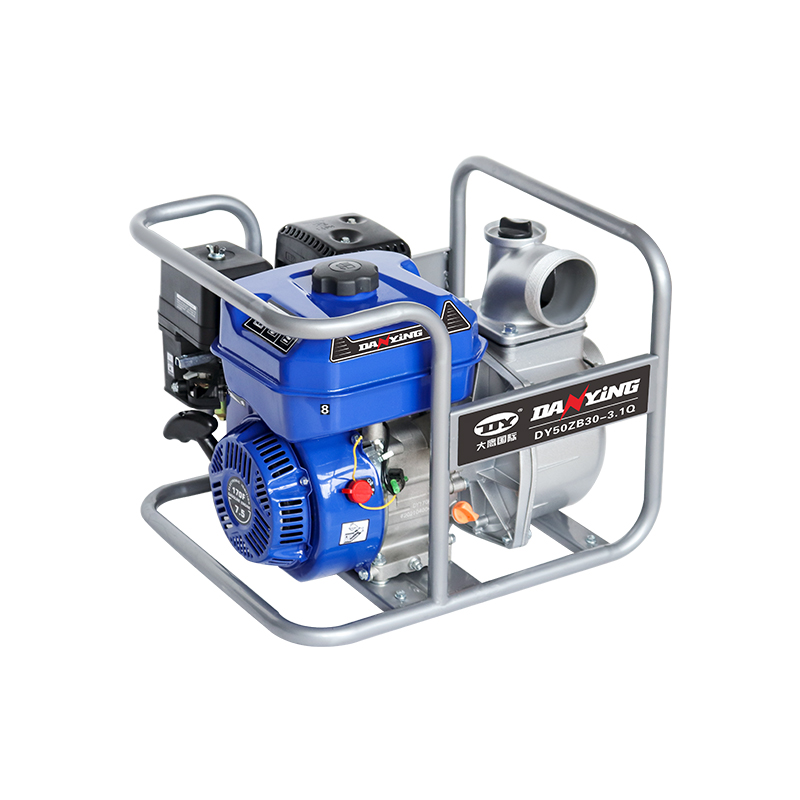

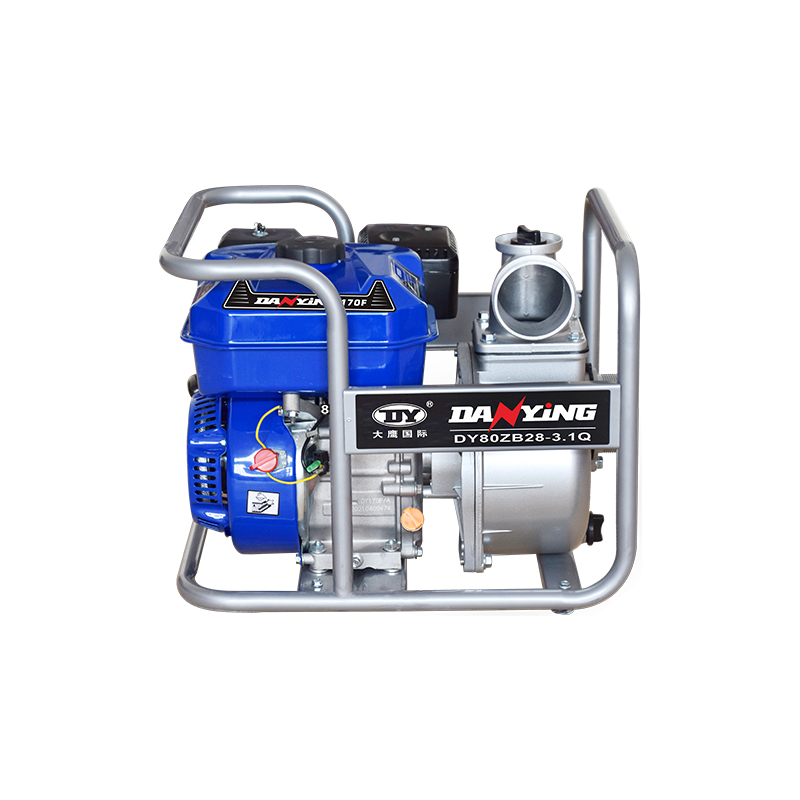

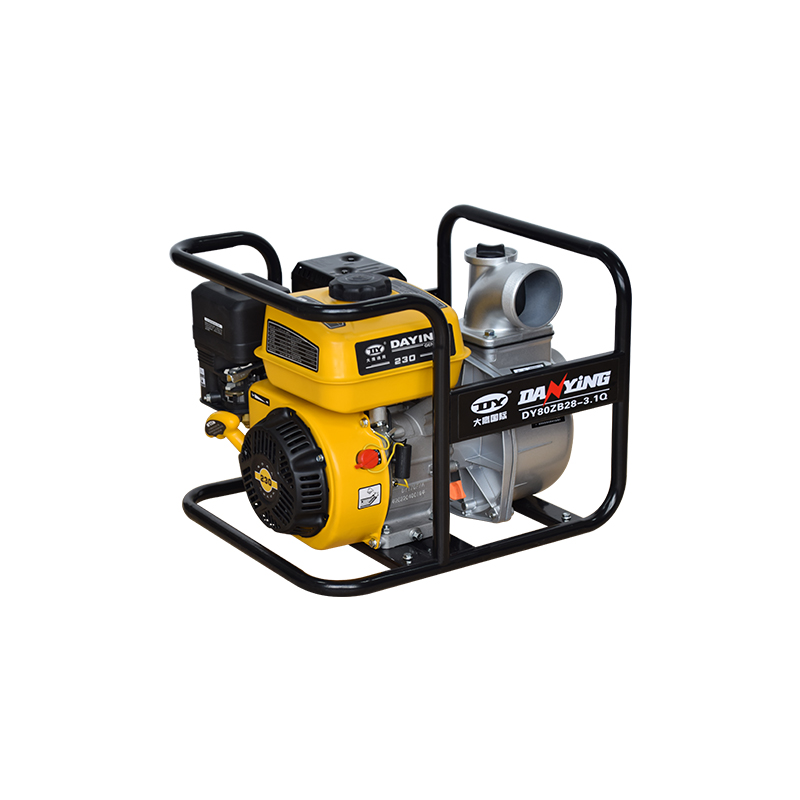

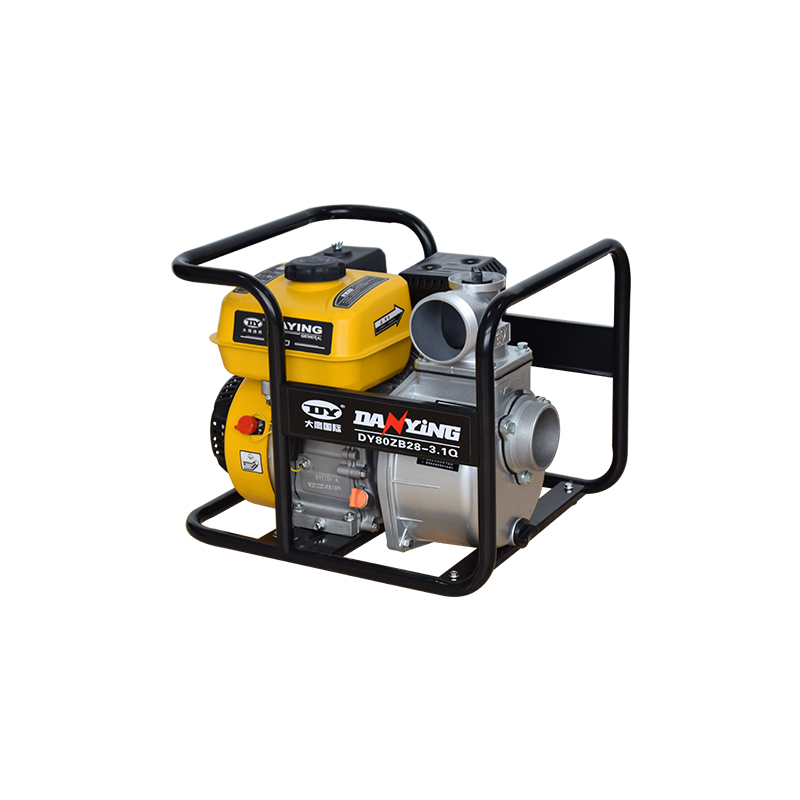

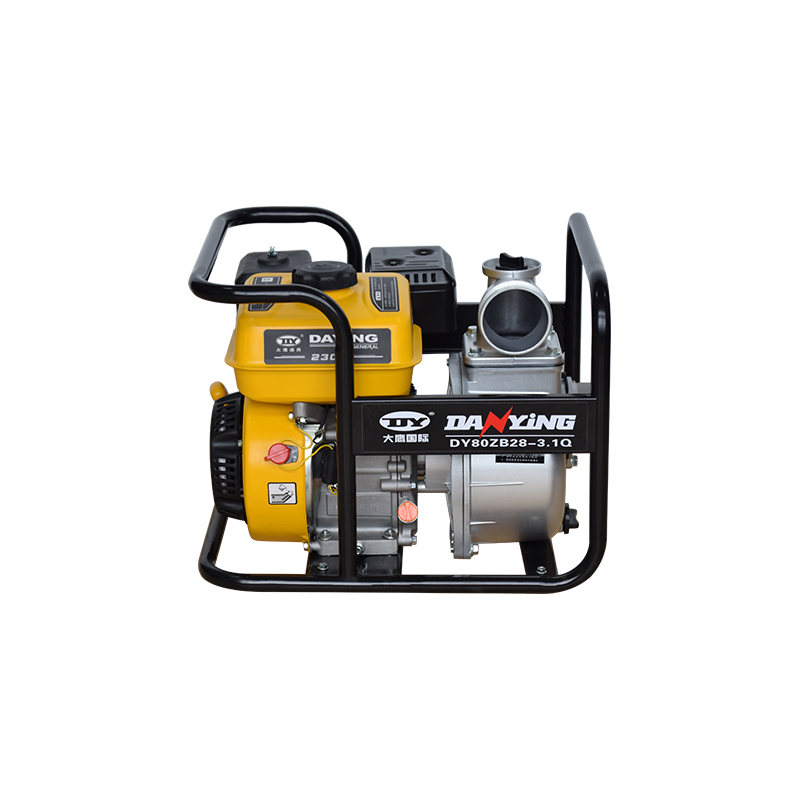

H Model
DAIN
| Product Model | DY50ZB25-4.2Q | DY80ZB25-4.2Q | DY100ZB24-8.5Q | DY150ZB20-7.5Q |
| Standard Model | 2 inches | 3 inches | 4 inches | 6 inches |
| Inlet Diameter (mm) | 2＂(50mm) | 3＂(80mm) | 4＂(100mm) | 6＂(150mm) |
| Outlet Diameter (mm) | 2＂(50mm) | 3＂(80mm) | 4＂(100mm) | 6＂(150mm) |
| Maximum Head (m) | 28 | 28 | 28 | 25 |
| Maximum Suction Lift (m) | 7 | 7 | 7 | 7 |
| Maximum Flow Rate (m³/h) | 36 | 60 | 75 | 140 |
| Engine Type | Overhead valve, single cylinder, inclined forced air cooling, 4-stroke OHV25 | |||
| Engine Model | 170FA | 170FA | 190F | 192FA |
| Engine Displacement (cc) | 210 | 210 | 420 | 460 |
| Maximum Power (kW) | 4.2 | 4.2 | 11.8 | 13.5 |
| Rated Speed (r/min) | 3600 | 3600 | 3600 | 3600 |
| Fuel Tank Capacity (L) | 3.6 | 3.6 | 6.5 | 6.5 |
| Fuel Consumption (g/(kW·h)) | ≤370 | ≤370 | ≤365 | ≤365 |
| Theoretical Working Duration (h) | 1.6 | 1.6 | 1.5 | 1.4 |
| Oil Capacity (L) | 0.6 | 0.6 | 1.1 | 1.1 |
| Starting Method | Manual start / Electric start (optional) | |||
| Random Tools Equipped | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Product Dimensions (mm) | 490×425×400 | 490×425×400 | 630×505×545 | 755×530×695 |
| Packaging Dimensions (mm) | 500×435×415 | 500×435×415 | 640×515×560 | 765×540×710 |
| Net Weight/Gross Weight (kg) | 21.5/24 | 23/26 | 43/46 | 60/62 |
| Quantity per 40ft High Cube Container | 750 | 750 | 328 | 180 |
