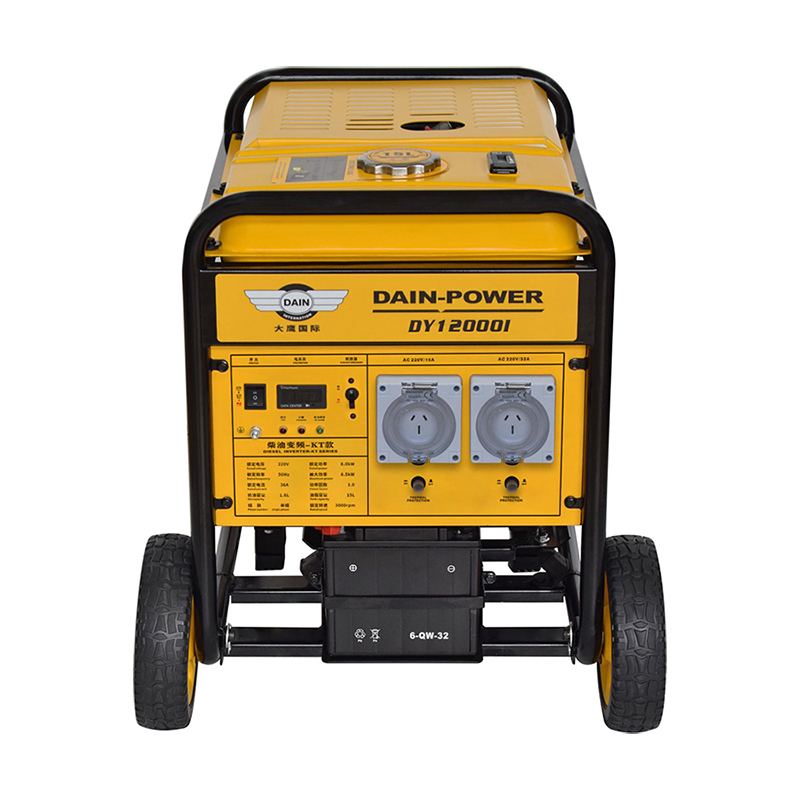

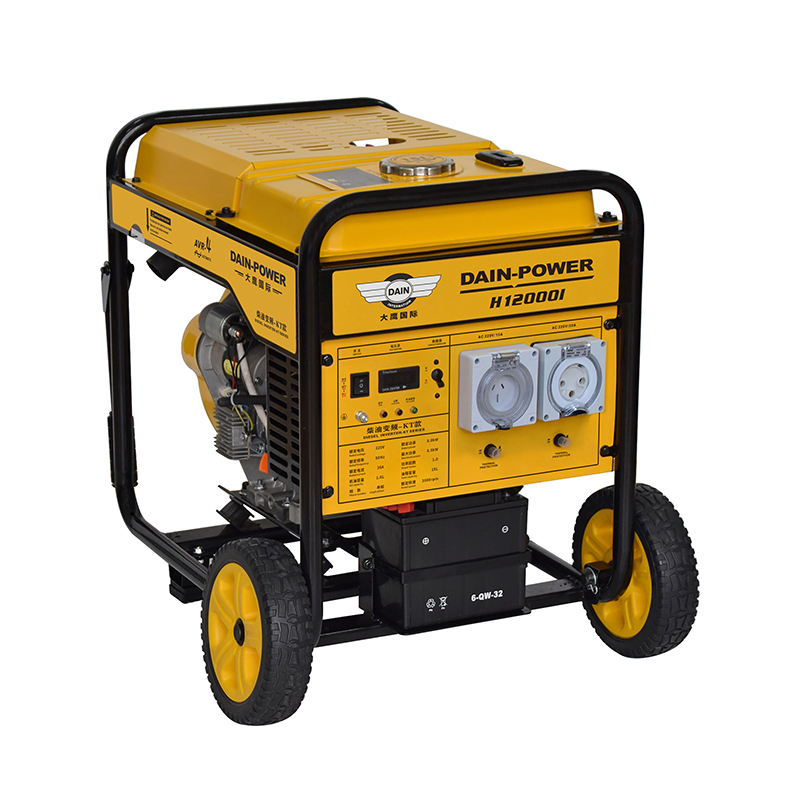

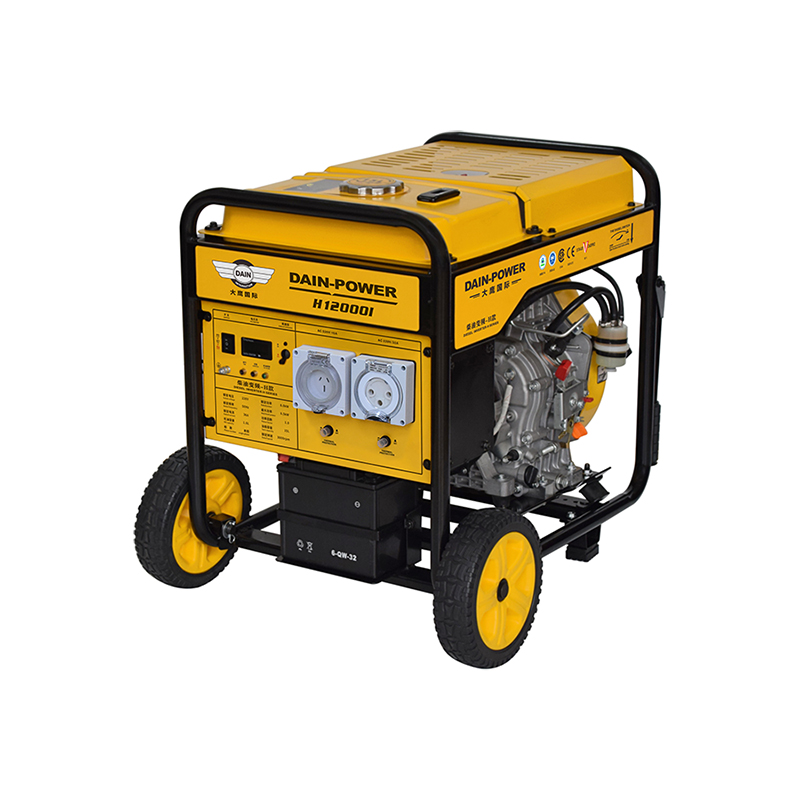

H model
DAIN
| Product Model | DYH11000I | DYH11000IS | DYH12000I | DYH12000IS | DYH12500I | DYH12500IS | DYH13500I | DYH13500IS | |
| Standard Model | 7.0kW | 7.0kW | 8.0kW | 8.0kW | 9.0kW | 9.0kW | 10.0kW | 10.0kW | |
| Rated Voltage (V) | 230 | 230/400 | 230 | 230/400 | 230 | 230/400 | 230 | 230/400 | |
| Rated Output Power (kW) COP | 7 | 7 | 8 | 8 | 9 | 9 | 10 | 10 | |
| Maximum Output Power (kW) | 7.5 | 7.5 | 8.5 | 8.5 | 9.5 | 9.5 | 10.5 | 10.5 | |
| Rated Current (A) | 30 | 30/12.5 | 34.5 | 34.5/14 | 39 | 39/16 | 43 | 43/18 | |
| Rated Frequency (Hz) | 50/60Hz (Selectable) | ||||||||
| Power Factor | 1 | 1.0/0.8 | 1 | 1.0/0.8 | 1 | 1.0/0.8 | 1 | 1.0/0.8 | |
| Fuel Tank Capacity (L) | 15 | ||||||||
| Theoretical Operating Time (h) | 6~6.5 | 6~6.5 | 6~6.5 | 6~6.5 | 5~5.5 | 5~5.5 | 4.5~5 | 4.5~5 | |
| Operating Altitude (m) | ≤1000 | ||||||||
| Operating Ambient Temperature (℃) | ≤40 | ||||||||
| Phase | Single Phase | Single Phase / Three Phase / Equal Power | Single Phase | Single Phase / Three Phase / Equal Power | Single Phase | Single Phase / Three Phase / Equal Power | Single Phase | Single Phase / Three Phase / Equal Power | |
| Engine Model | C192FE | C192FE | C195FE | C195FE | C1100FE | C1100FE | C1105FE | C1105FE | |
| Engine Displacement (cc) | 499 | 499 | 532 | 532 | 667 | 667 | 736 | 736 | |
| Bore × Stroke (mm) | 92×75 | 92×75 | 95×75 | 95×75 | 100×85 | 100×85 | 105×85 | 105×85 | |
| Rated Speed (r/min) | 3600 | ||||||||
| Combustion Method | Compression-ignition direct injection | ||||||||
| Fuel supply advance angle (degree) | 20±1 BTDC (Before Top Dead Center) | ||||||||
| Starting Method | Recoil Start / Electric Start (Selectable) | ||||||||
| Valve Clearance (Cold State) (mm) | 0.1-0.15 | ||||||||
| Cooling System | Forced Air Cooling | ||||||||
| Engine oil Capacity (L) | 1.65 | 1.65 | 1.65 | 1.65 | 2 | 2 | 2 | 2 | |
| Fuel Consumption (g/(kW·h)) | ≤275 | ≤275 | ≤265 | ≤265 | ≤260 | ≤260 | ≤260 | ≤260 | |
| Accessory Configuration | Wheels + Handle (Optional) | ||||||||
| Product Dimensions (mm) | 680×480×605 | 720×500×655 | |||||||
| Packaging Dimensions (mm) | 700×500×635 | 740×520×685 | |||||||
| Net Weight/Gross Weight (kg) | Manual Start | - | - | ||||||
| Electric Start | 89/93 | 91/95 | 93/97 | 93/97 | 96/100 | 96/100 | 102/106 | 102/106 | |
| Weight with Wheels & Handle | 3 | 3 | |||||||
| Quantity per 40ft High Cube Container | 296 | 210 | |||||||
