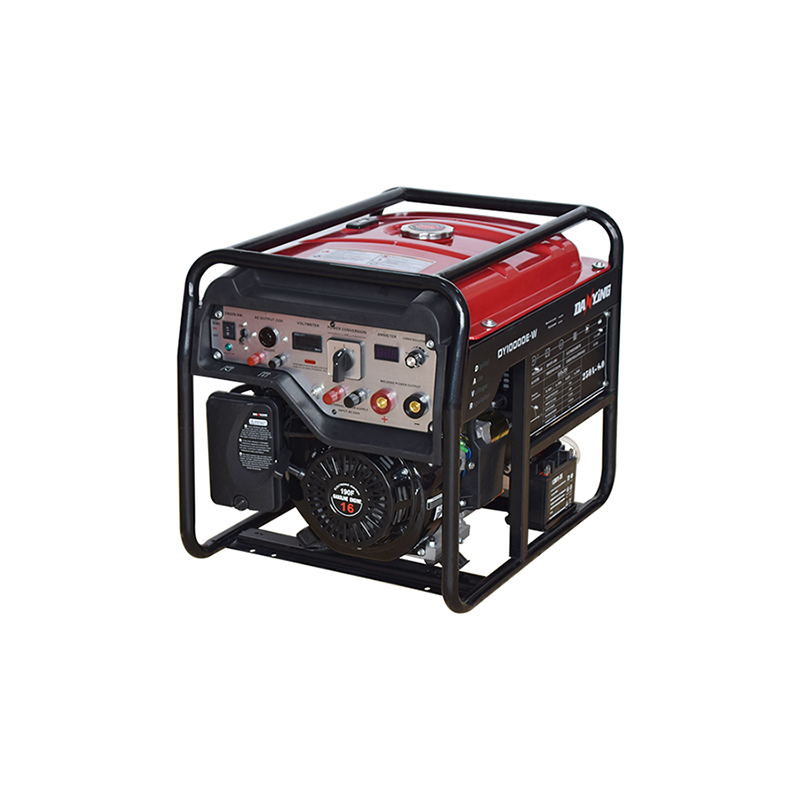

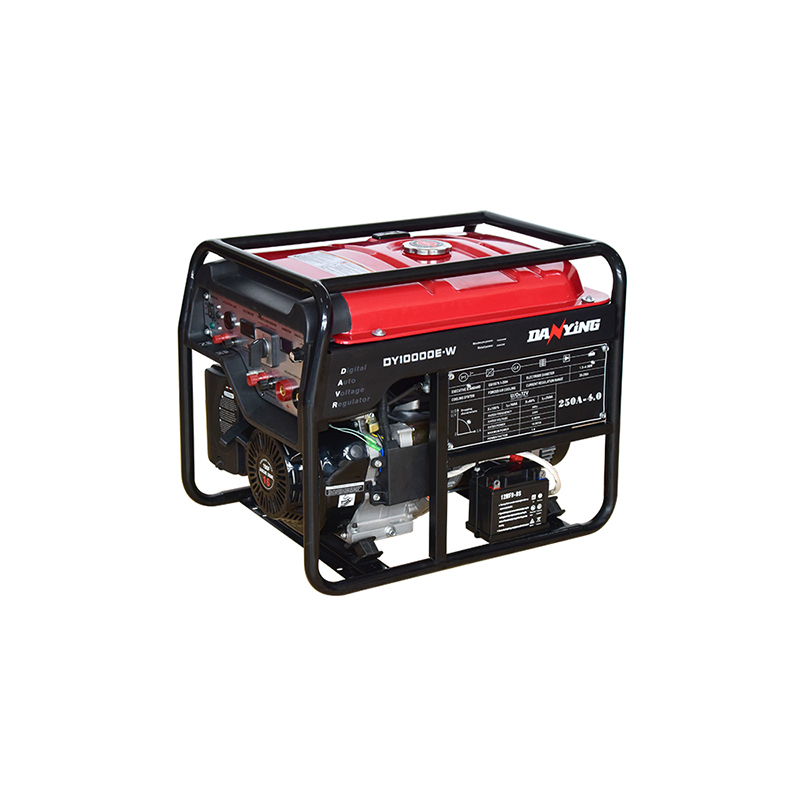

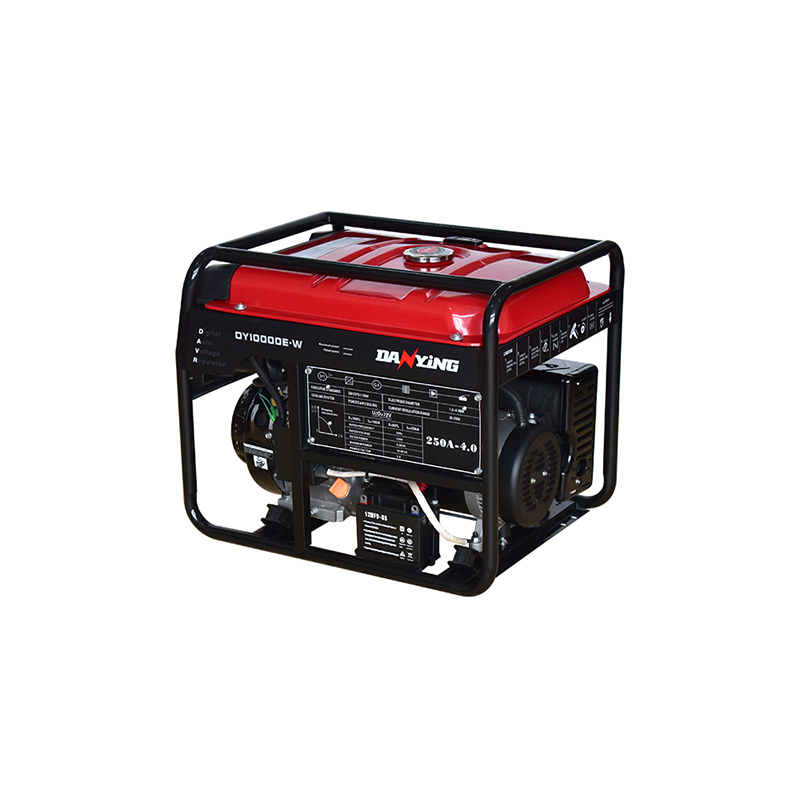

H Model
DAIN
| Product Model | DYH8500E-W | DYH10000E-W | DYH10000E-W | |
| Standard Model | 190A-3.2 | 250A-4.0 | 250A-4.0 | |
| Welding Electrode Diameter (mm) | 1.6-4.0mm (Continuous Welding for 3.2mm) | 1.6-5.0mm (Continuous Welding for 4.0mm) | 1.6-5.0mm (Continuous Welding for 4.0mm) | |
| Current Adjustment Range | 60-190A | 60-250A | 60-250A | |
| Current Adjustment Method | Manual Rotary Adjustment | |||
| No-Load Voltage (V) | 60-70 | |||
| Load Voltage (V) | 25-35 | |||
| Duty Cycle | 60% | |||
| Insulation Class | F | |||
| Rated Voltage (V) | 220 | 220 | 220/380 | |
| Rated Output Power (kW) COP | 5 | 8 | 8 | |
| Maximum Output Power (kW) | 5.5 | 8.5 | 8.5 | |
| Rated Current (A) | 22.5 | 36 | 36/15 | |
| Rated Frequency (Hz) | 50/60Hz (Optional) | |||
| Power Factor | 1 | 1 | 1.0/0.8 | |
| Fuel Tank Capacity (L) | 30 | |||
| Theoretical Operating Time (h) | 7~7.5 | 6.5~7 | 6.5~7 | |
| Operating Altitude (m) | ≤1000m | |||
| Operating Ambient Temperature (℃) | ≤40℃ | |||
| Phase | Single Phase | Single Phase / Three Phase with Equal Power Integration | ||
| Engine Model | 190F | 192FB | 192FB | |
| Engine Displacement (cc) | 420 | 465 | 465 | |
| Bore × Stroke (mm) | 90×66 | 92×70 | 92×70 | |
| Rated Speed (r/min) | 3000/3600rpm (Optional) | |||
| Ignition System | Contactless Transistor Ignition | |||
| Starting Method | Recoil Start / Electric Start (Optional) | |||
| Cooling System | Forced Air Cooling | |||
| Engine oil Capacity (L) | 1.1 | |||
| Fuel Consumption (g/(kW·h)) | ≤365 | |||
| Accessory Configuration | Wheels + Handle (Optional) | |||
| Product Dimensions (mm) | 700×540×575 | |||
| Packaging Dimensions (mm) | 710×550×590 | |||
| Net Weight/Gross Weight (kg) | Manual Start | - | ||
| Electric Start | 94/95 | 95.9/100.9 | 102/103 | |
| Weight with Wheels & Handle | 3 | |||
| Quantity per 40ft High Cube Container | 264 | |||
