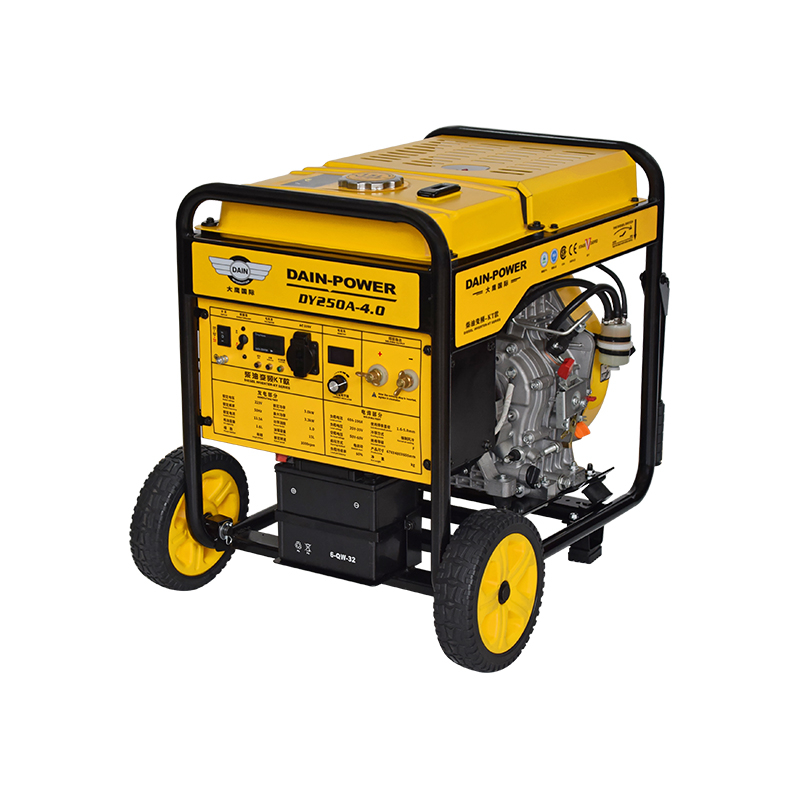

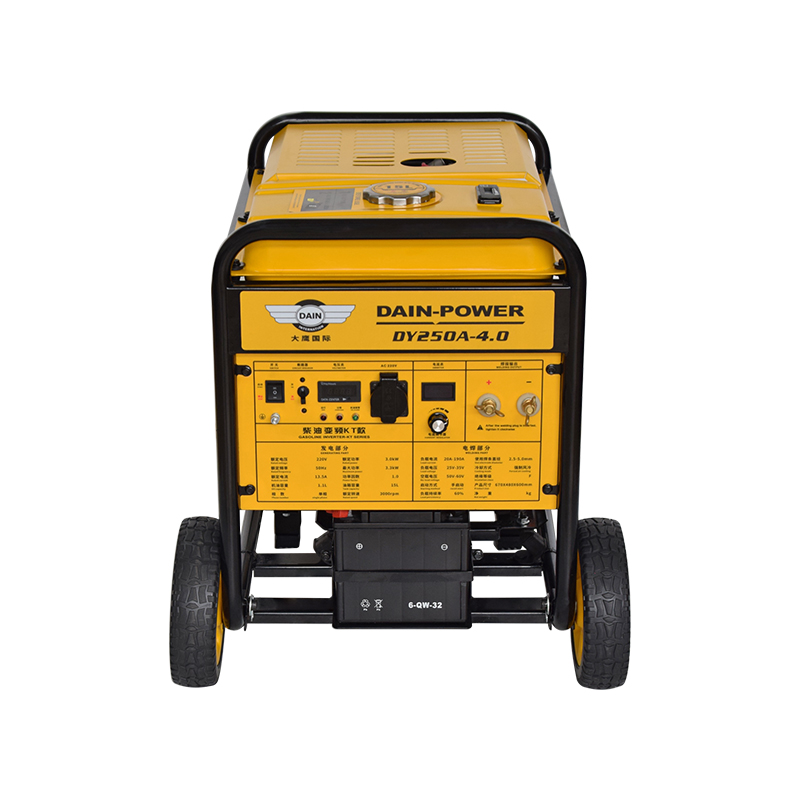

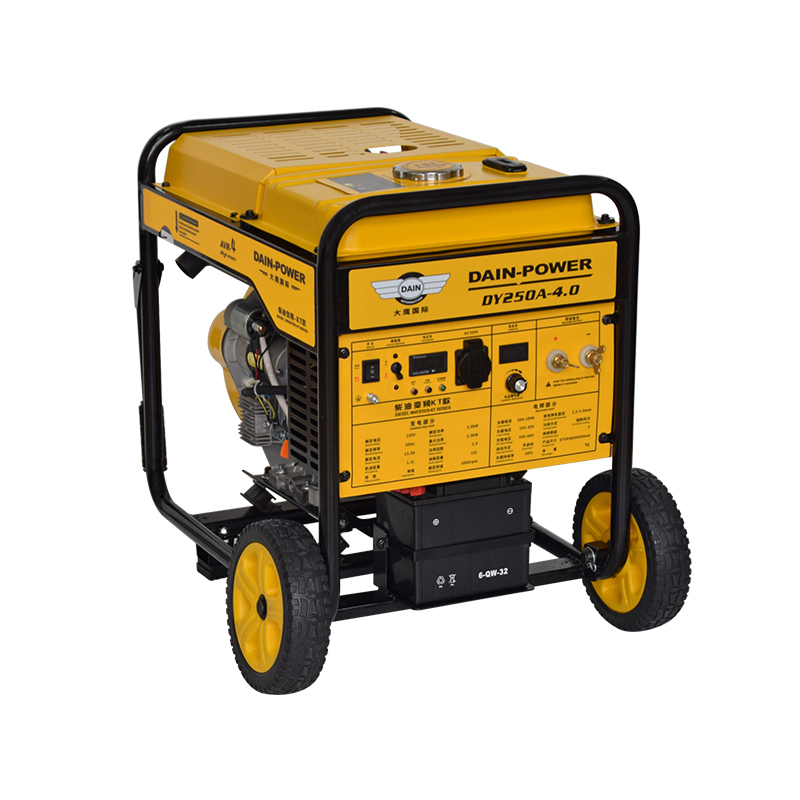

H model
DAIN
| Product Model | DY190A-3.2 | DY230A-4.0 | DY270A-5.0 | |
| Standard Model | DY190A-3.2 | DY230A-4.0 | DY270A-5.0 | |
| Welding Electrode Diameter (mm) | 1.6-4.0mm (Continuous Welding for 3.2mm) | 1.6-4.0mm (Continuous Welding for 3.2mm) | 1.6-5.0mm (Continuous Welding for 4.0mm) | |
| Current Adjustment Range | 60-190A | 60-250A | 60-250A | |
| Current Adjustment Method | Manual Rotary Adjustment | |||
| No-Load Voltage (V) | 50-60 | |||
| Load Voltage (V) | 25-35 | |||
| Duty Cycle | 60% | |||
| Insulation Class | F | |||
| Rated Voltage (V) | 230 | |||
| Rated Output Power (kW) COP | 3 | 2 | 1 | |
| Maximum Output Power (kW) | 3.3 | 2.3 | 1.2 | |
| Rated Current (A) | 13 | 8.5 | 4.3 | |
| Rated Frequency (Hz) | 50/60Hz (Optional) | |||
| Power Factor | 1 | |||
| Fuel Tank Capacity (L) | 15 | |||
| Theoretical Operating Time (h) | 6.5~7 | 6~6.5 | 5.5~6 | |
| Operating Altitude (m) | ≤1000 | |||
| Operating Ambient Temperature (℃) | ≤40 | |||
| Phase | Single Phase | |||
| Engine Model | C192FE | C195FE | C1100FE | |
| Engine Displacement (cc) | 499 | 532 | 667 | |
| Bore × Stroke (mm) | 92×75 | 95×75 | 100×85 | |
| Rated Speed (r/min) | 3600 | |||
| Combustion Method | Compression-ignition direct injection | |||
| Fuel supply advance angle (degree) | 20±1 BTDC (Before Top Dead Center) | |||
| Starting Method | Recoil/Electric Integrated Start | |||
| Cooling System | Forced Air Cooling | |||
| Engine oil Capacity (L) | 1.65 | 1.65 | 2 | |
| Fuel Consumption (g/(kW·h)) | ≤265 | ≤265 | ≤260 | |
| Accessory Configuration | Wheels + Handle (Optional) | |||
| Product Dimensions (mm) | 680×480×605 | 680×480×605 | 720×500×655 | |
| Packaging Dimensions (mm) | 700×500×635 | 700×500×635 | 740×520×685 | |
| Net Weight/Gross Weight (kg) | Manual Start | / | ||
| Electric Start | 89/93 | 91/95 | 97/101 | |
| Weight with Wheels & Handle | 3 | |||
| Quantity per 40ft High Cube Container | 296 | 296 | 210 | |
