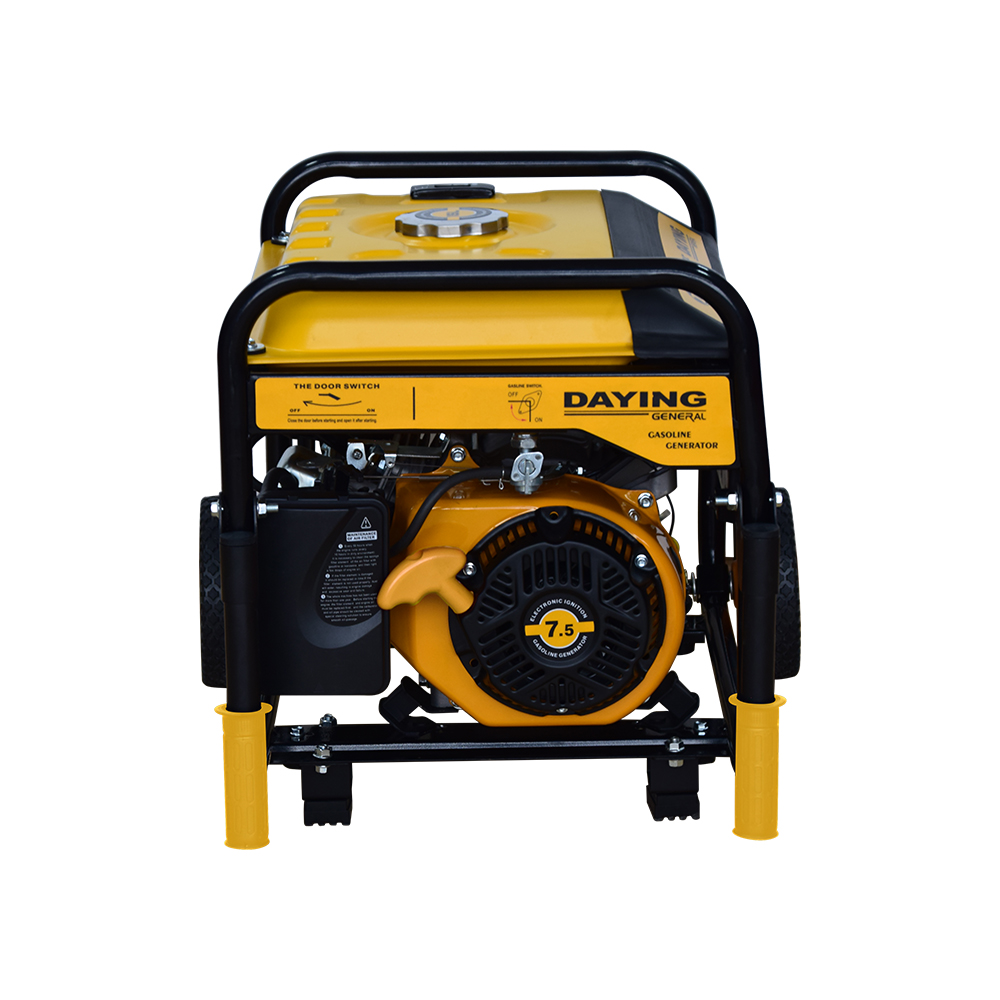

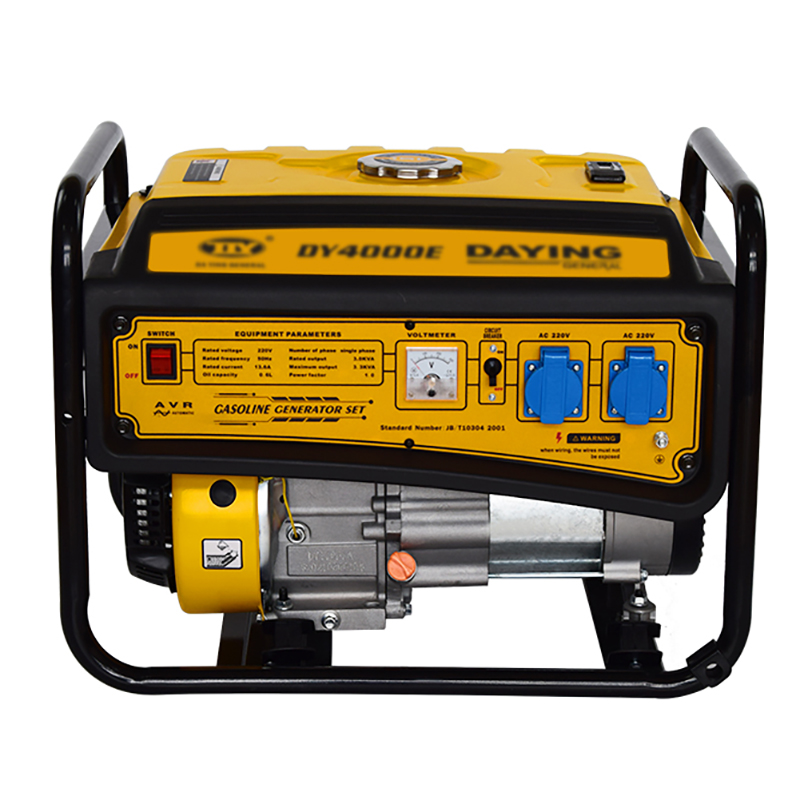

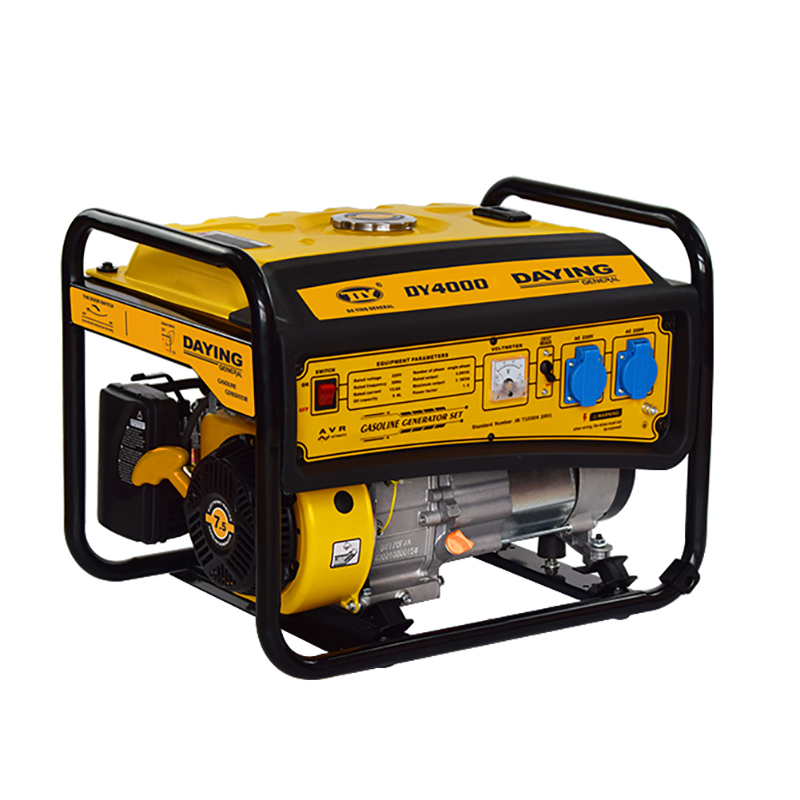

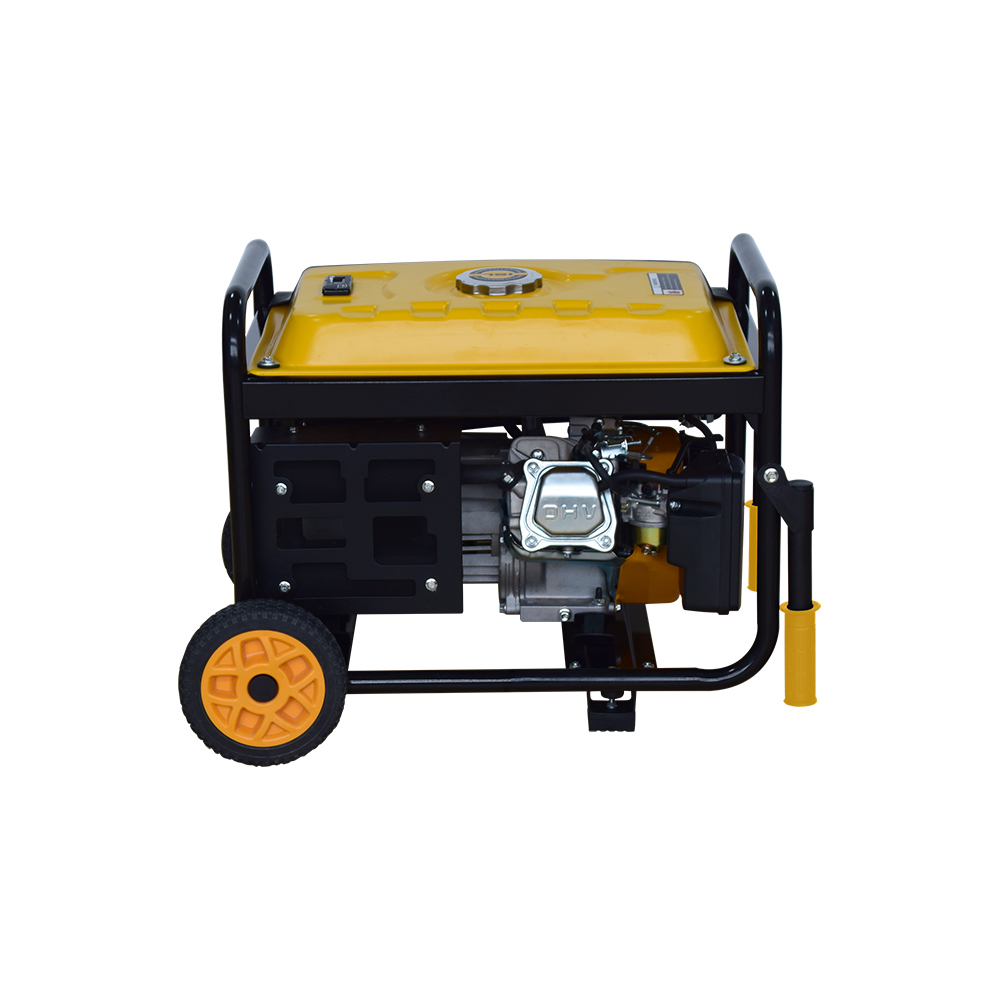

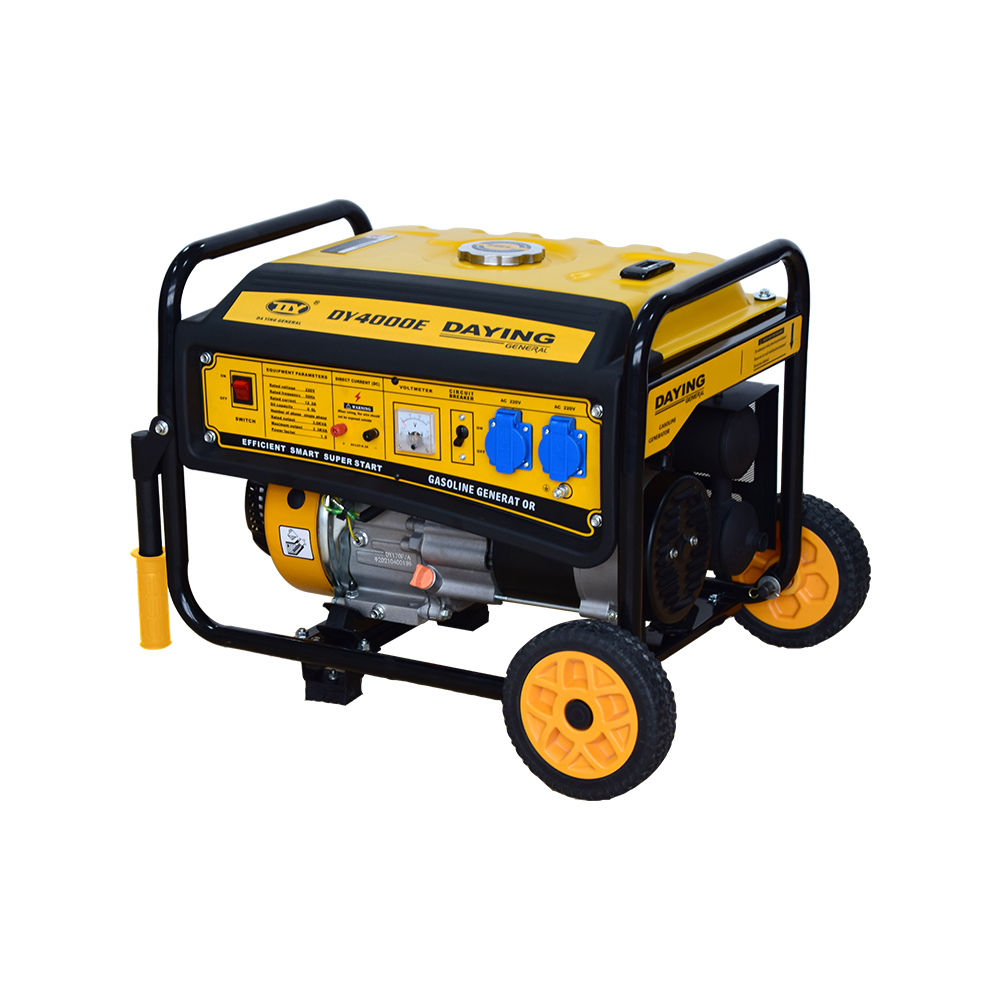

G model
DAIN
| Product Model | DYG2500 | DYG3000 | DYG4000 | DYG4500 | DYG6500E/SE | DYG8500E/SE | DYG10000E/SE | DYG12000E/SE | DYG12500E/SE | DYG13500E/SE | |
| Standard Model | 2.0kW | 2.5kW | 3.0kW | 3.5kW | 5.0kW | 6.0kW | 7.0kW | 8.0kW | 8.5kW | 9.0kW | |
| Rated Voltage (V) | 220 | 220 | 220 | 220 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | |
| Rated Output Power (kW) COP | 2 | 2.5 | 2.8 | 3.2 | 5 | 6 | 7 | 8 | 8.5 | 9 | |
| Maximum Output Power (kW) | 2.3 | 2.8 | 3 | 3.5 | 5.5 | 6.5 | 7.5 | 8.5 | 9 | 9.5 | |
| Rated Current (A) | 9 | 11 | 12.5 | 14.5 | 22.5/9 | 27/11 | 31.5/13 | 36/15 | 38.5/16 | 40.5/17 | |
| Rated Frequency (Hz) | 50/60Hz (Selectable) | 50/60Hz (Selectable) | 50/60Hz (Selectable) | ||||||||
| Power Factor | 1 | 1.0/0.8 | 1.0/0.8 | ||||||||
| Fuel Tank Capacity (L) | 15 | 15 | 15 | 15 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Theoretical Operating Time (h) | 5.5~6 | 5.5~6 | 5.5~6 | 5~5.5 | 5.5~6 | 5.5~6 | 5~5.5 | 4.5~5 | 4~4.5 | 4~4.5 | |
| Operating Altitude (m) | ≤1000m | ≤1000m | ≤1000m | ||||||||
| Operating Ambient Temperature (℃) | ≤40℃ | ≤40℃ | ≤40℃ | ||||||||
| Phase | Single Phase | Single Phase / Three Phase / Equal Power | Single Phase / Three Phase / Equal Power | ||||||||
| Engine Model | 170FA | 170FA | 170FA | 170FB | 190F | 190F | 192FA | 192FB | 194F | 196F | |
| Engine Displacement (cc) | 210 | 210 | 210 | 225 | 420 | 420 | 460 | 465 | 499 | 520 | |
| Bore × Stroke (mm) | 70×55 | 70×55 | 70×55 | 70×58 | 90×66 | 90×66 | 92×69 | 92×70 | 94×72 | 96×72 | |
| Rated Speed (r/min) | 3000/3600rpm (Selectable) | ||||||||||
| Ignition System | Contactless Transistor Ignition | ||||||||||
| Starting Method | Recoil Start / Electric Start (Selectable) | ||||||||||
| Cooling System | Forced Air Cooling | ||||||||||
| Engine oil Capacity (L) | 0.65 | 0.65 | 0.65 | 0.65 | 1.1 | 1.1 | 1.1 | 1.1 | 1.2 | 1.2 | |
| Fuel Consumption (g/(kW·h)) | ≤370 | ≤370 | ≤370 | ≤370 | ≤365 | ≤365 | ≤365 | ≤365 | ≤365 | ≤365 | |
| Accessory Configuration | Wheels + Handle (Optional) | ||||||||||
| Product Dimensions (mm) | 590×430×450 | 680×520×545 | 680×520×545 | ||||||||
| Packaging Dimensions (mm) | 600×440×465 | 690×530×560 | 690×530×560 | ||||||||
| Net Weight/Gross Weight (kg) | Manual Start | 42/43 | 40.2/42.3 | - | - | - | |||||
| Electric Start | 45/46 | 49/50 | 72/75 | 73/76 | 82/86 | 88/92 | 90/94 | 92/96 | |||
| Weight with Wheels & Handle | 2 | 3 | |||||||||
| Quantity per 40ft High Cube Container | 490 | 292 | |||||||||
