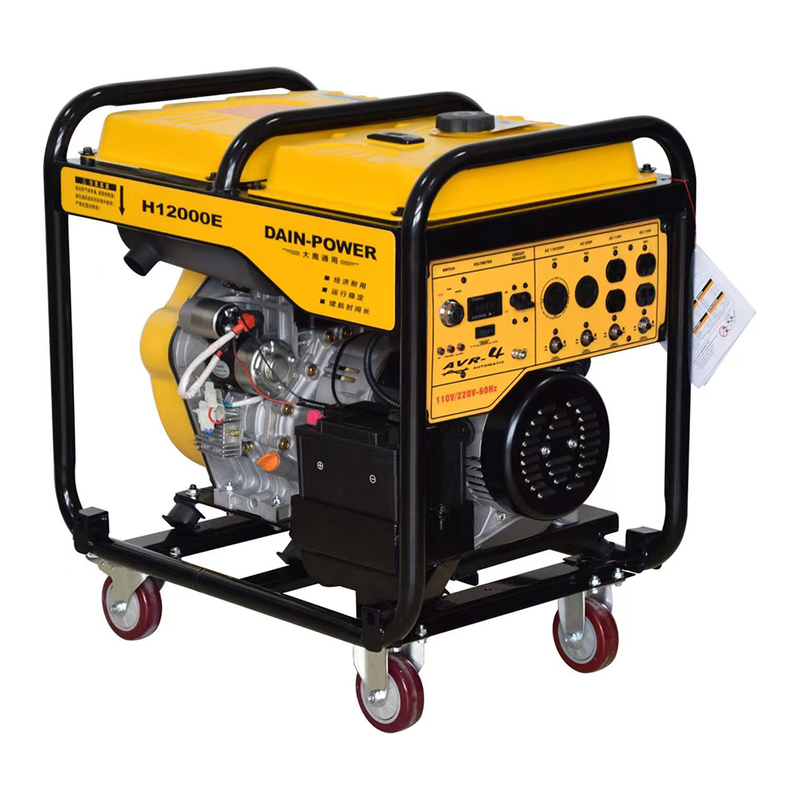

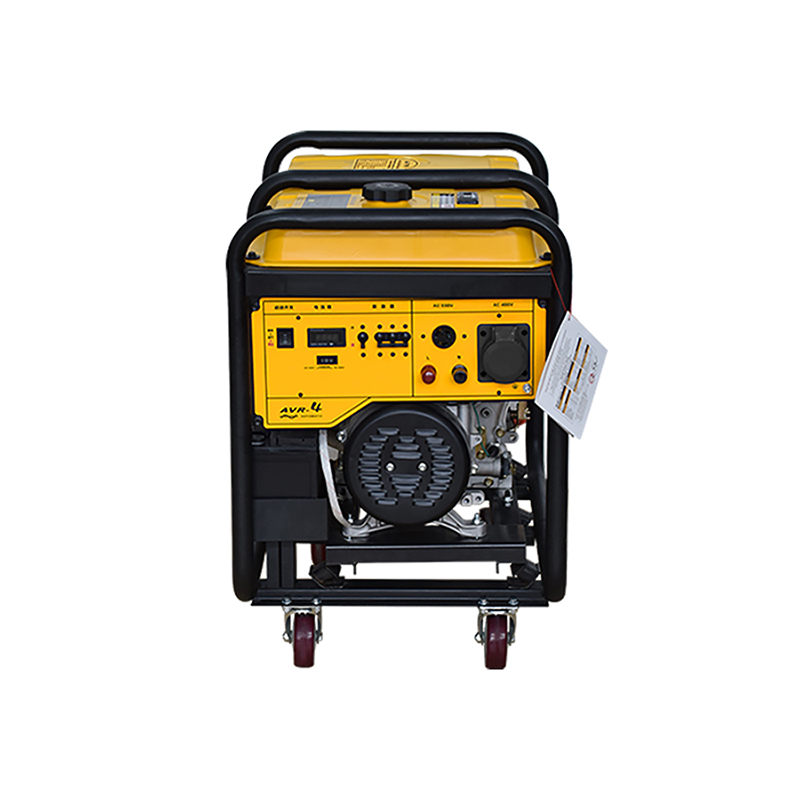

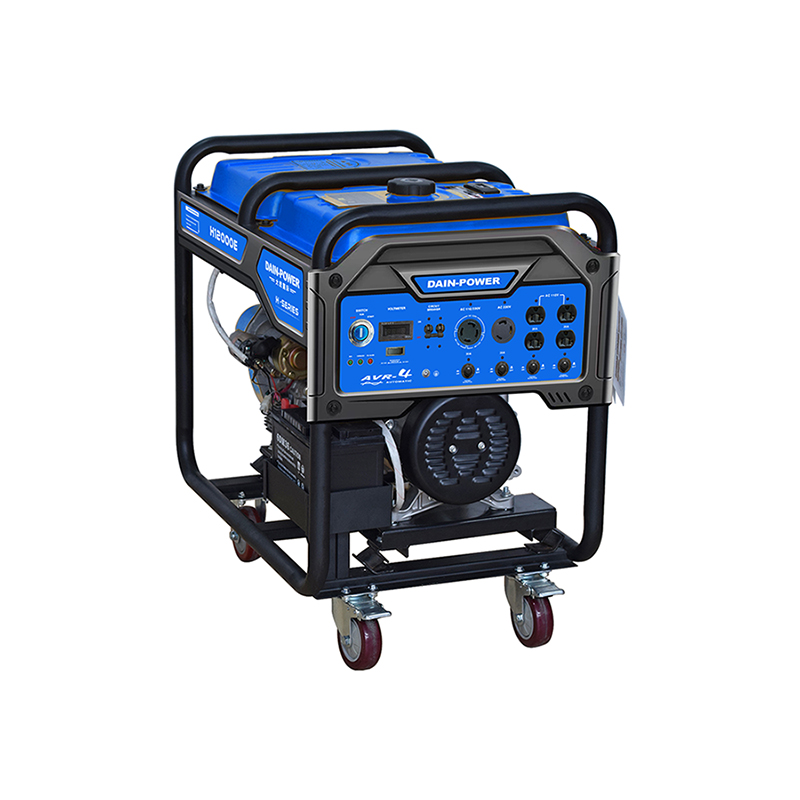

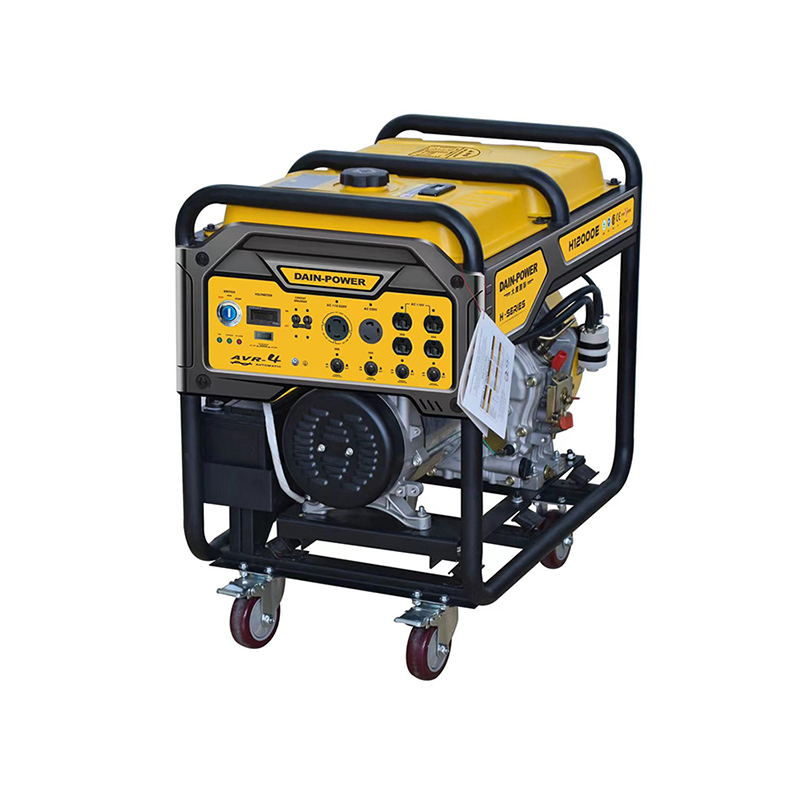

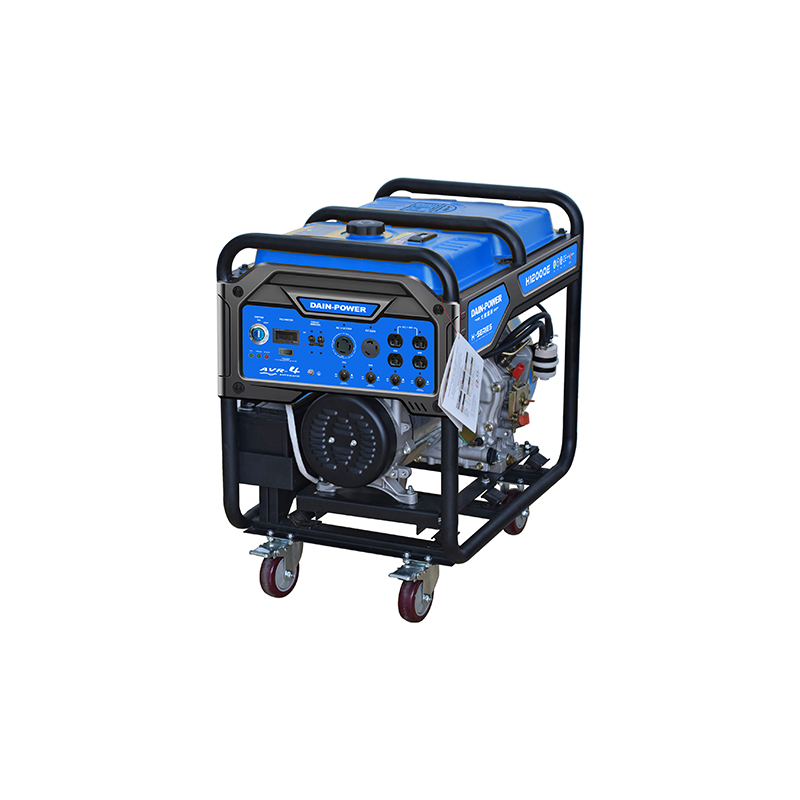

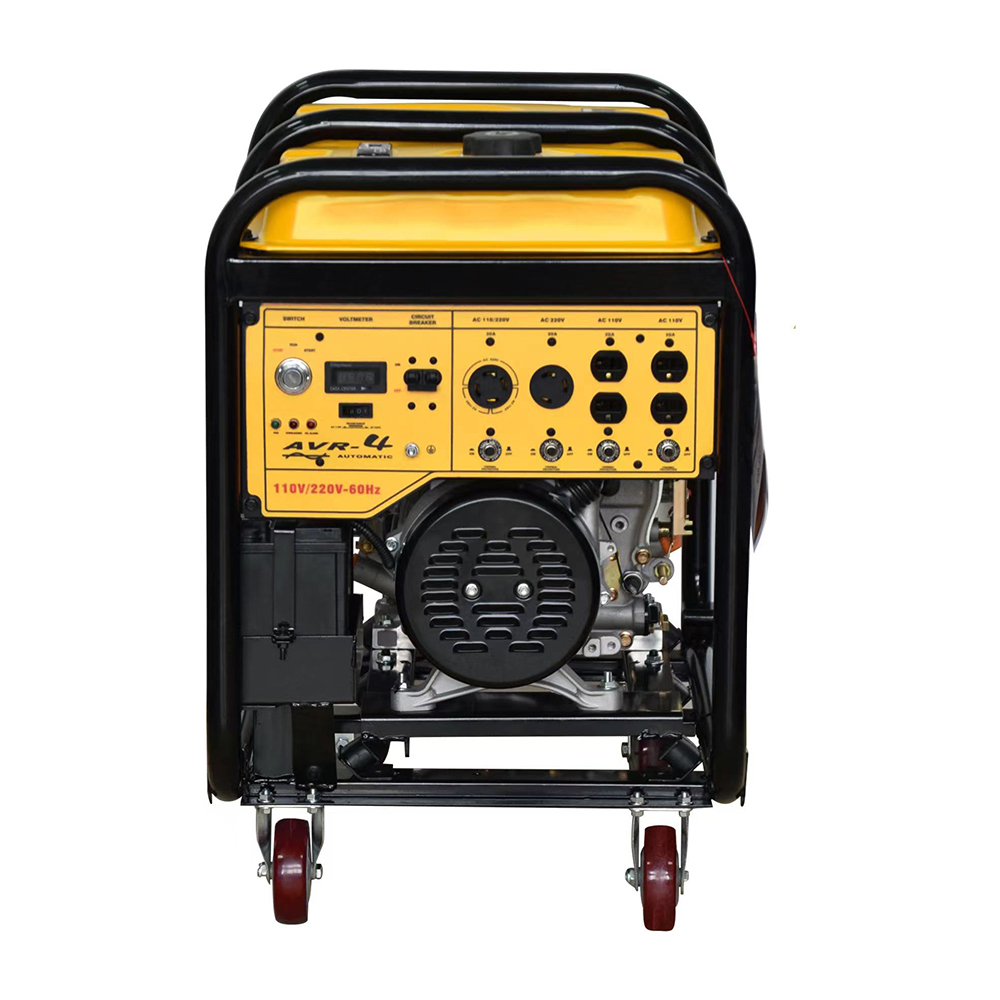

H model
DAIN
| Product Model | DYH9000E/SE | DYH10000E/SE | DYH12000E/SE | DYH13500E/SE | DYH14500E/SE | DYH15500E/SE | |
| Standard Model | 5.0kW | 6.0kW | 7.0kW | 8.0kW | 8.5kW | 9.0kW | |
| Rated Voltage (V) | 220/380 | ||||||
| Rated Output Power (kW) COP | 5 | 6 | 7 | 8 | 8.5 | 9 | |
| Maximum Output Power (kW) | 5.5 | 6.5 | 7.5 | 8.5 | 9 | 9.5 | |
| Rated Current (A) | 22.5/9.5 | 27/11 | 31.5/13 | 36/15 | 38.5/16 | 40.5/17 | |
| Rated Frequency (Hz) | 50/60Hz (Selectable) | ||||||
| Power Factor | 1.0/0.8 | ||||||
| Fuel Tank Capacity (L) | 12 | ||||||
| Theoretical Operating Time (h) | 6~6.5 | 5~5.5 | 5~5.5 | 5~5.5 | 4~4.5 | 4~4.5 | |
| Operating Altitude (m) | ≤1000 | ||||||
| Operating Ambient Temperature (℃) | ≤40 | ||||||
| Phase | Single Phase / Three Phase / Equal Power | ||||||
| Engine Model | C188FE | C192FE | C195FE | C198FE | C1100FE | C1105FE | |
| Engine Displacement (cc) | 456 | 499 | 532 | 633 | 667 | 736 | |
| Bore × Stroke (mm) | 88×75 | 92×75 | 95×75 | 98×84 | 100×85 | 105×85 | |
| Rated Speed (r/min) | 3000/3600rpm (Selectable) | ||||||
| Combustion Method | Compression-ignition direct injection | ||||||
| Fuel supply advance angle (degree) | 20±1 BTDC (Before Top Dead Center) | ||||||
| Starting Method | Recoil Start / Electric Start (Selectable) | ||||||
| Valve Clearance (Cold State) (mm) | 0.1-0.15 | ||||||
| Cooling System | Forced Air Cooling | ||||||
| Engine oil Capacity (L) | 1.65 | 1.65 | 1.65 | 2 | 2 | 2 | |
| Fuel Consumption (g/(kW·h)) | ≤275 | ≤275 | ≤265 | ≤260 | ≤260 | ≤260 | |
| Accessory Configuration | Wheels + Handle (Optional) | ||||||
| Product Dimensions (mm) | 730×510×630 | ||||||
| Packaging Dimensions (mm) | 750×530×660 | ||||||
| Net Weight/Gross Weight (kg) | Manual Start | - | |||||
| Electric Start | 112/120 | 115/123 | 117/125 | 123/131 | 129/137 | 132/140 | |
| Weight with Wheels & Handle | 3 | ||||||
| Quantity per 40ft High Cube Container | 266 | 201 | |||||
