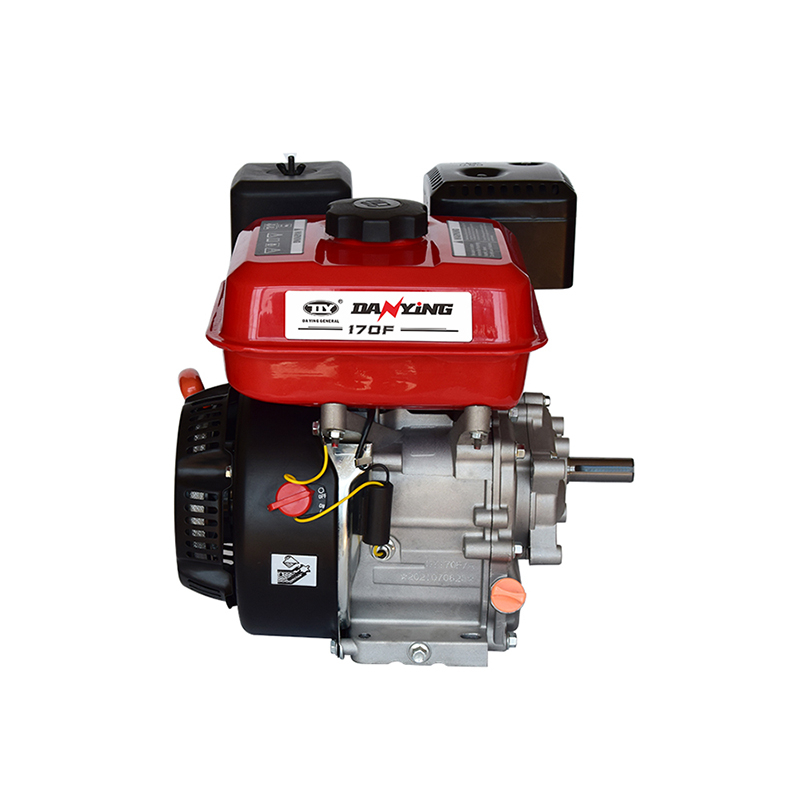

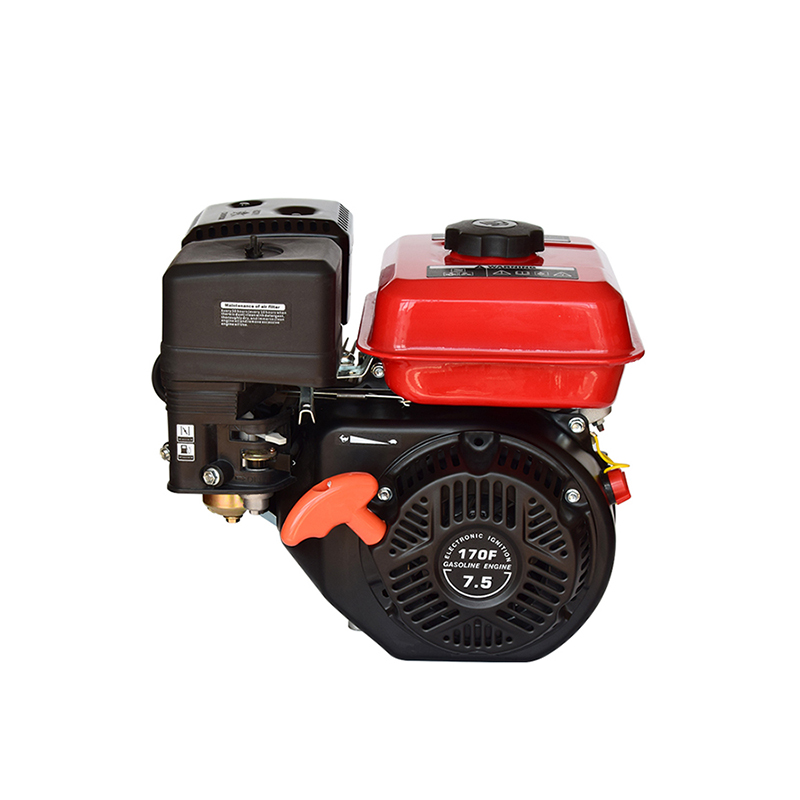

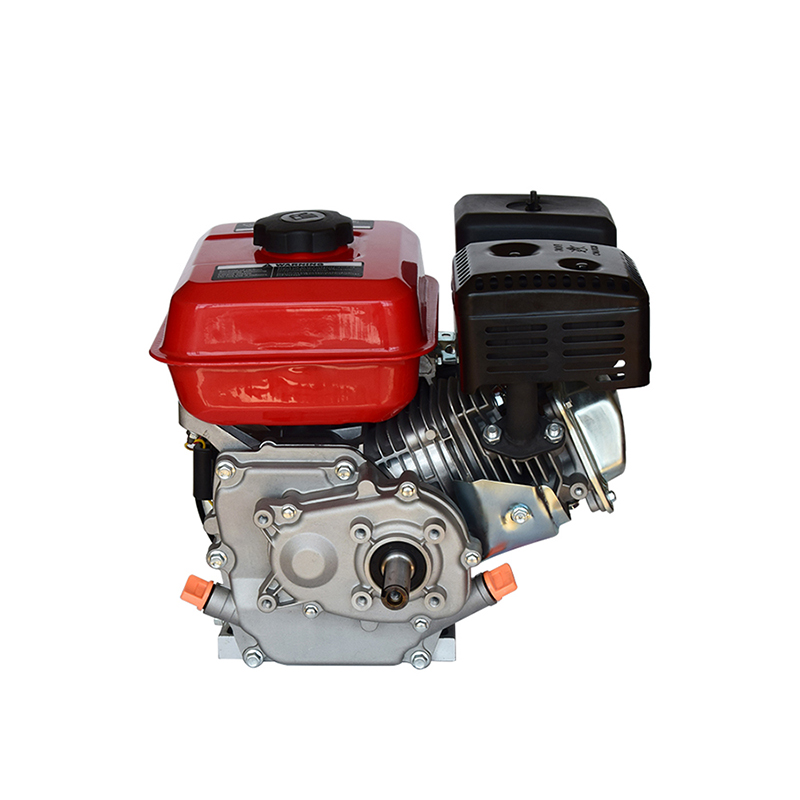

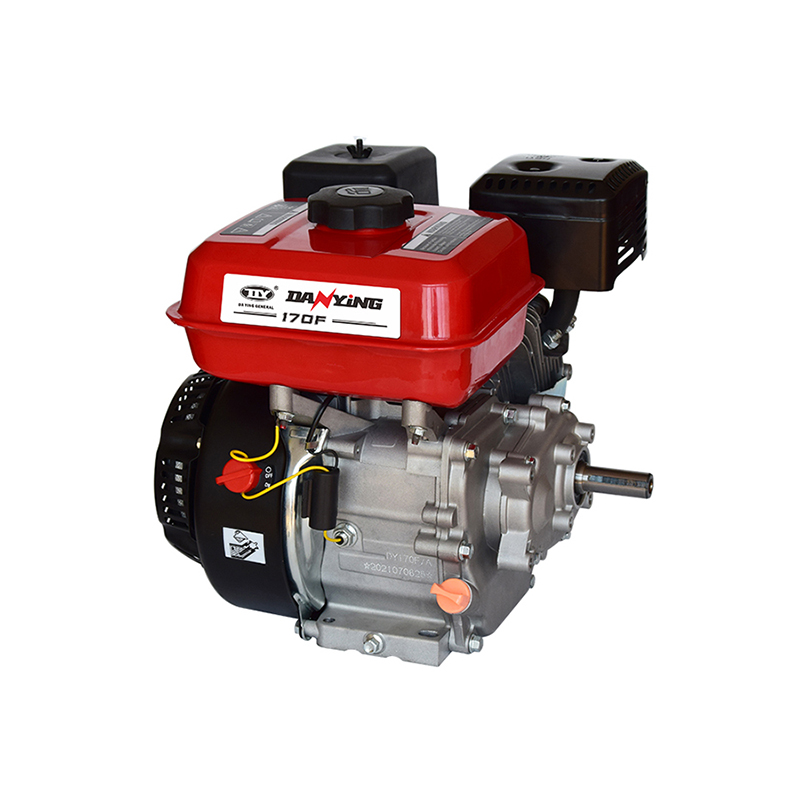

168FA-R/168FB-R/170FA-R/170FB-R/172F-R
Dain
| Product Model | DY160F-R | DY200F-R | DY210F-R | DY225F-R | DY230F-R |
| Standard Model | 168FA-R | 168FB-R | 170FA-R | 170FB-R | 172F-R |
| Engine Type | Single cylinder, 4-stroke, forced air-cooled, OHV | ||||
| Horsepower/(HP) | 5.5 | 6.5 | 7.5 | 7.5 | 7.8 |
| IOB Power/(kW) | 3.2 | 3.8 | 4 | 4.5 | 4.8 |
| Maximum Torque/(Nm/rpm) | 10.6/2500 | 11/2500 | 11.5/2500 | 12/2500 | 12.5/2500 |
| Minimum No-load Stable Speed/(r/min) | 1400±150 | ||||
| Speed Fluctuation Rate | ≤10% | ||||
| Noise | 70dB(A)/7m | ||||
| Oil Capacity(L) | 0.65 | ||||
| Fuel Tank Capacity(L) | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Fuel Consumption(g/(kW·h)) | ≤395 | ≤395 | ≤375 | ≤375 | ≤375 |
| Theoretical Working Hours(h) | 3~3.5 | 2.5~3 | 2.5~3 | 2~2.5 | 2~2.5 |
| Bore × Stroke(mm) | 68×45 | 68×54 | 70×55 | 70×58 | 72×58 |
| Rated Speed(r/min) | 3600/1800 | ||||
| Displacement/(cc) | 160 | 200 | 210 | 225 | 230 |
| Compression Ratio | 8.5:1 | ||||
| Lubrication Method | Splash | ||||
| Starting Method | Electric/Manual Start | ||||
| Cooling Method | Forced Air Cooling | ||||
| Combustion Chamber Type | Spherical/Inclined Intake and Exhaust | ||||
| Crankshaft Rotation Direction | Counterclockwise | ||||
| Valve Clearance | Intake valve: 0.10 mm~0.15mm, Exhaust valve: 0.15 mm~0.20mm | ||||
| Spark Plug Gap | 0.7~0.8mm | ||||
| Ignition Method | Transistor Magnetic Ignition | ||||
| Overall Dimensions(mm) | 360×340×350 | ||||
| Packaging Dimensions(mm) | 415×360×385 | ||||
| Net Weight/Gross Weight(kg) | 13.5/15.5 | 14/16 | 14/16 | 14/16 | 14/16 |
| Quantity per 40ft High Cube Container | 1104 | ||||
