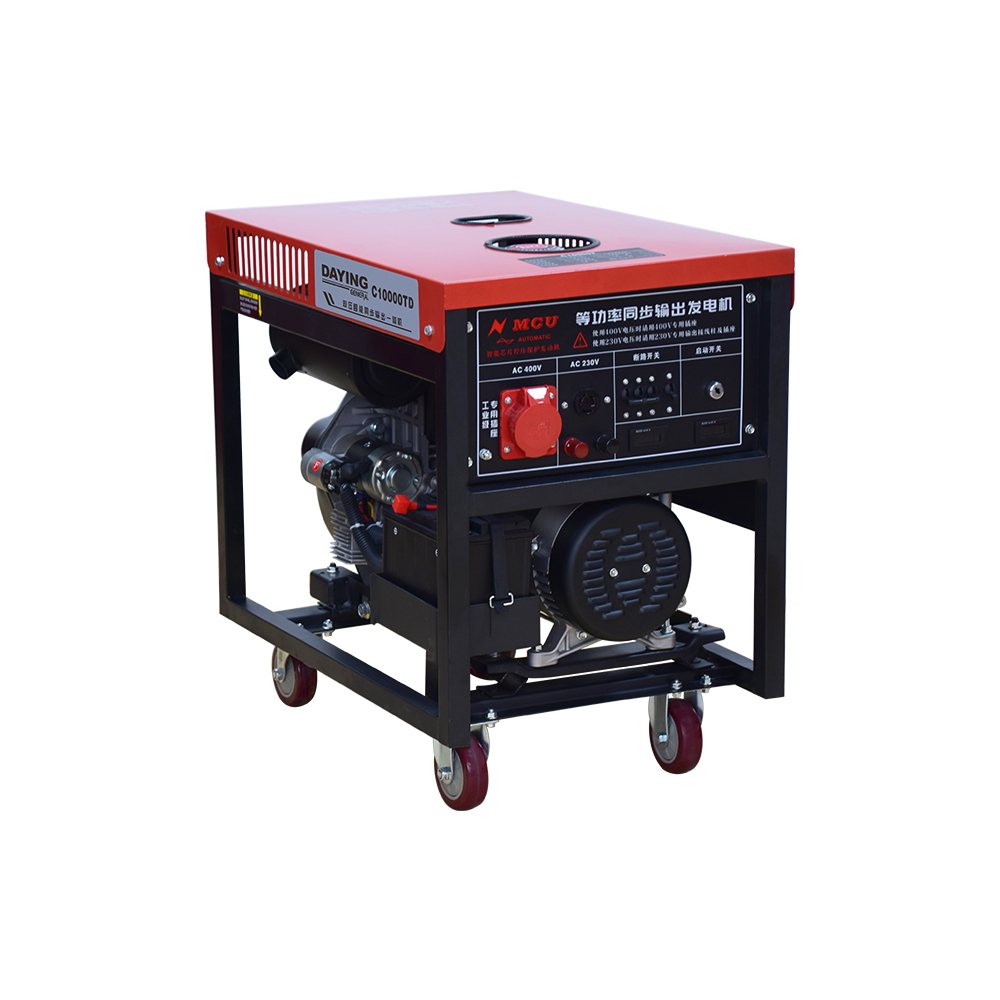

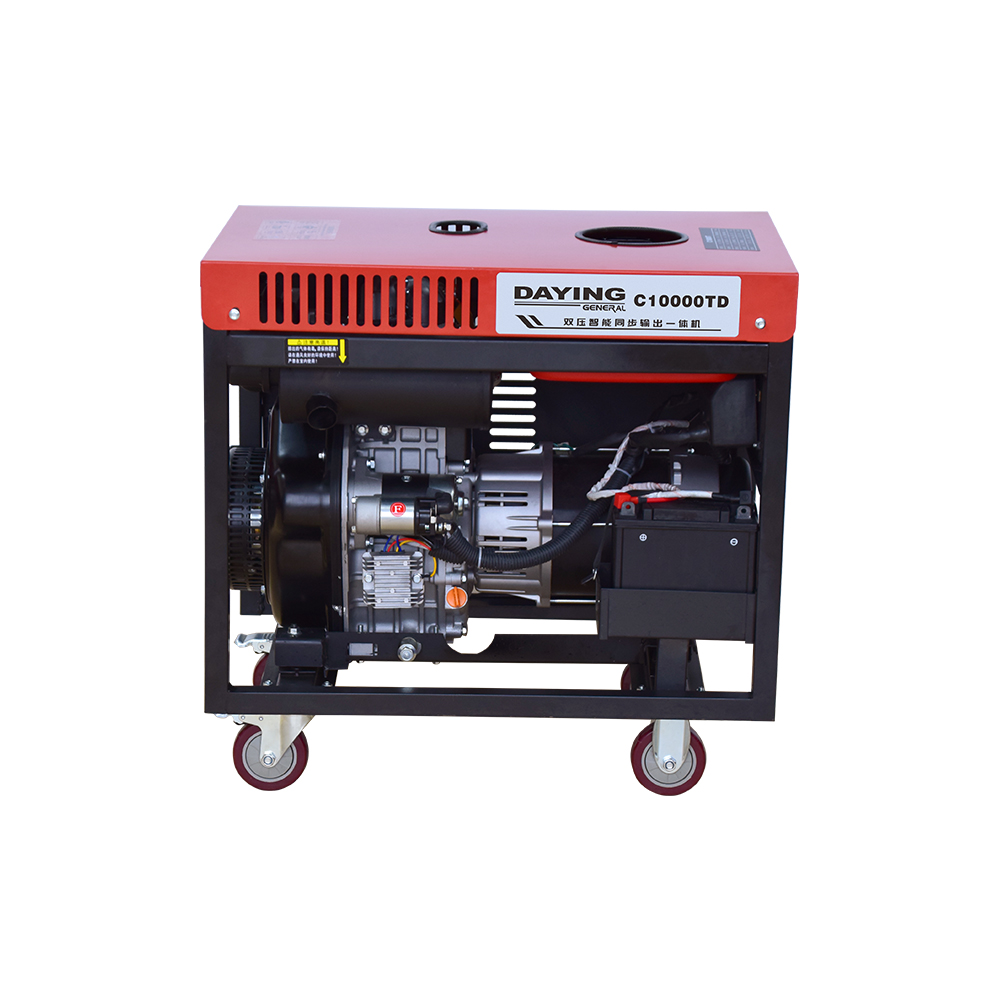

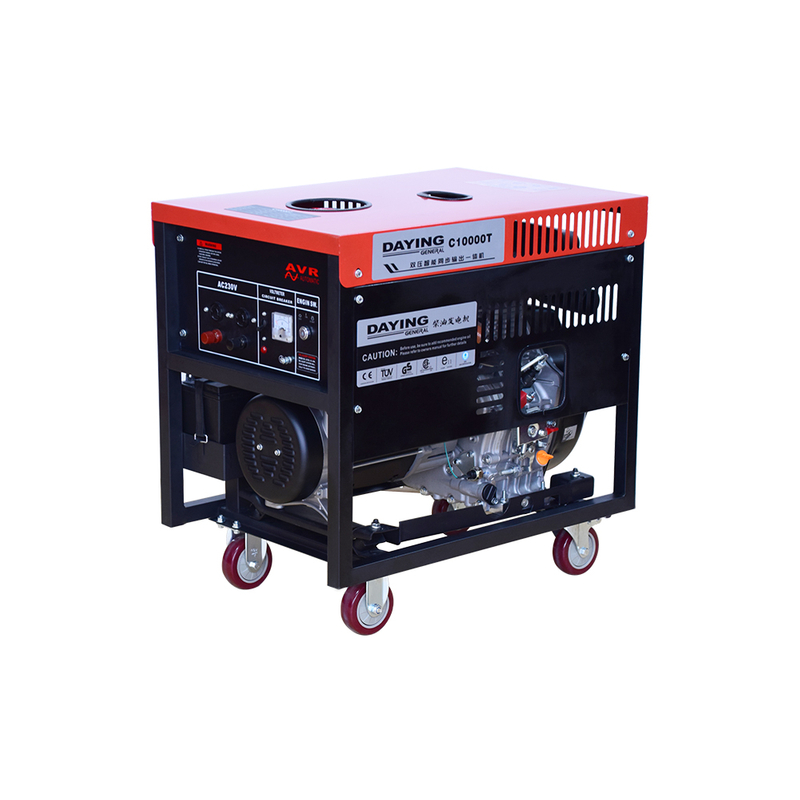

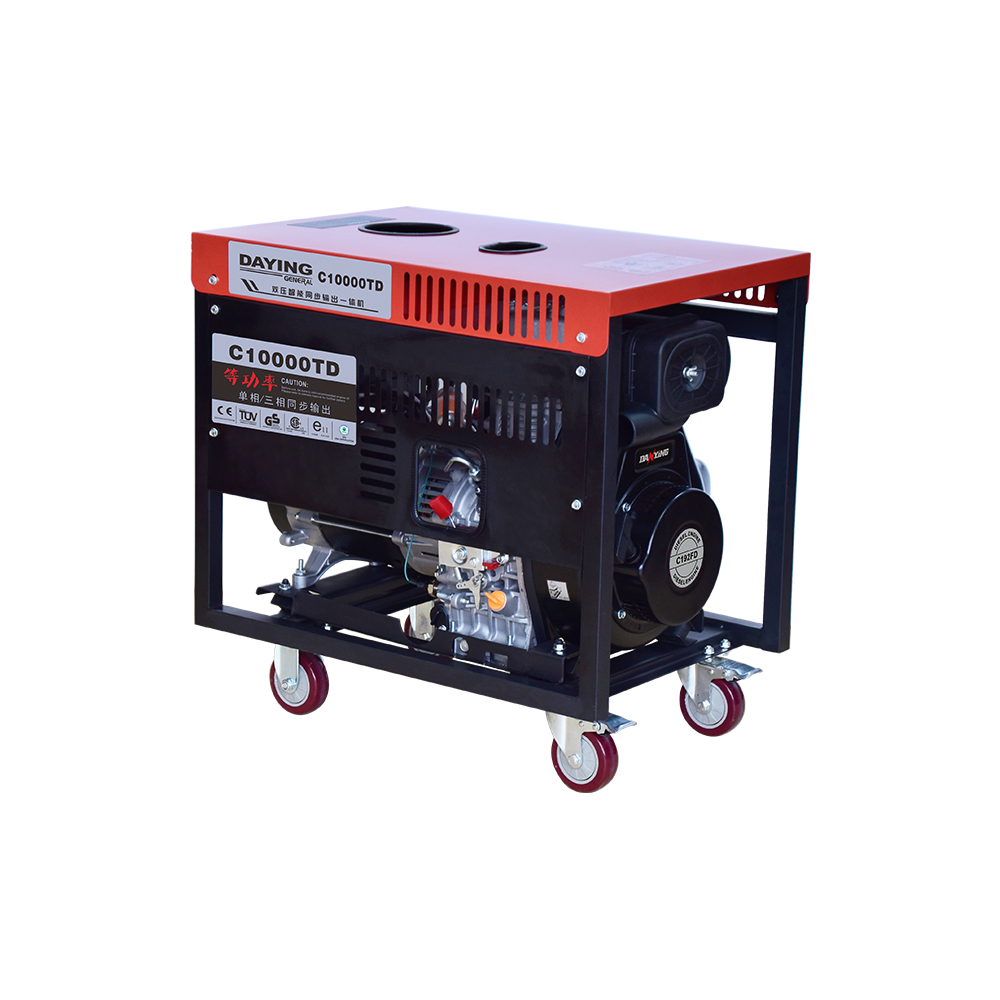

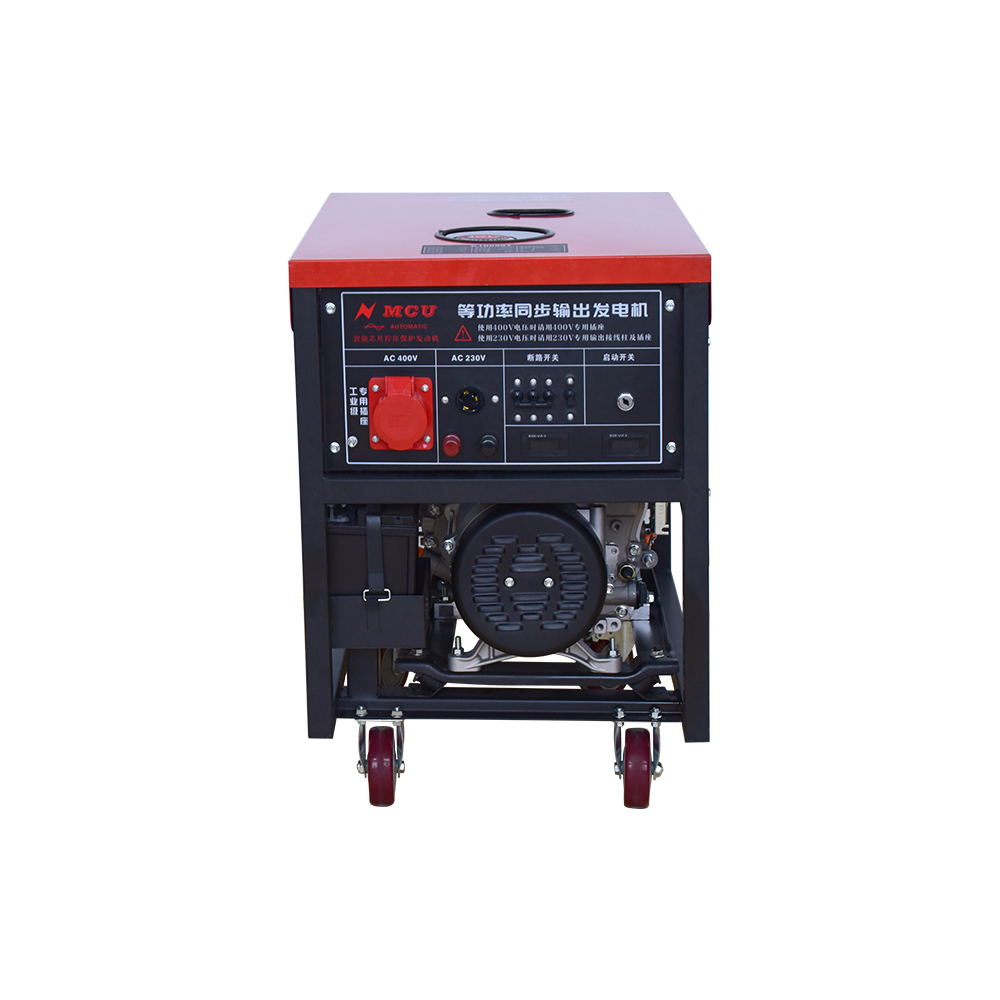

C Model
DAIN
| Product Model | DYCF6500 | DYCF8500 | DYCF10000 | DYCF12000 | DYCF15000 | |
| Standard Model | 5.0kW | 6.5kW | 7.5kW | 8.0kW | 9.0kW | |
| Rated Voltage (V) | 220/380 | |||||
| Rated Output Power (kW) COP | 5 | 6 | 7 | 7.5 | 8.3 | |
| Maximum Output Power (kW) | 5.5 | 6.5 | 7.5 | 8 | 9 | |
| Rated Current (A) | 22.5/9.5 | 27/11 | 31.5/13 | 34/14 | 37.5/15.5 | |
| Rated Frequency (Hz) | 50/60Hz (Selectable) | |||||
| Power Factor | 1.0/0.8 | |||||
| Fuel Tank Capacity (L) | 12 | |||||
| Theoretical Operating Time (h) | 6.5~7 | 5.5~6 | 5~5.5 | 5~5.5 | 4~4.5 | |
| Operating Altitude (m) | ≤1000m | |||||
| Operating Ambient Temperature (℃) | ≤40℃ | |||||
| Phase | Single Phase / Three Phase / Equal Power | |||||
| Engine Model | C186FE | C188FE | C192FE | C195FE | C1100FE | |
| Engine Displacement (cc) | 406 | 456 | 499 | 532 | 667 | |
| Bore × Stroke (mm) | 86×70 | 88×75 | 92×75 | 95×75 | 100×85 | |
| Rated Speed (r/min) | 3000/3600rpm (Selectable) | |||||
| Combustion Method | Compression-ignition direct injection | |||||
| Fuel supply advance angle (degree) | 20±1 BTDC (Before Top Dead Center) | |||||
| Starting Method | Recoil Start / Electric Start (Selectable) | |||||
| Valve Clearance (Cold State) (mm) | 0.1-0.15 | |||||
| Cooling System | Forced Air Cooling | |||||
| Engine oil Capacity (L) | 1.65 | 1.65 | 1.65 | 1.65 | 2 | |
| Fuel Consumption (g/(kW·h)) | ≤275 | ≤275 | ≤265 | ≤265 | ≤260 | |
| Accessory Configuration | Wheels + Handle (Optional) | |||||
| Product Dimensions (mm) | 740×505×585 | 740×505×585 | 740×505×585 | 785×515×700 | 785×515×700 | |
| Packaging Dimensions (mm) | 760×525×615 | 760×525×615 | 760×525×615 | 805×535×730 | 805×535×730 | |
| Net Weight/Gross Weight (kg) | Manual Start | - | ||||
| Electric Start | 113/115 | 118/120 | 114.1/120.4 | 128/130 | 148/150 | |
| Weight with Wheels & Handle | 3 | |||||
| Quantity per 40ft High Cube Container | 276 | 276 | 276 | 180 | 180 | |
