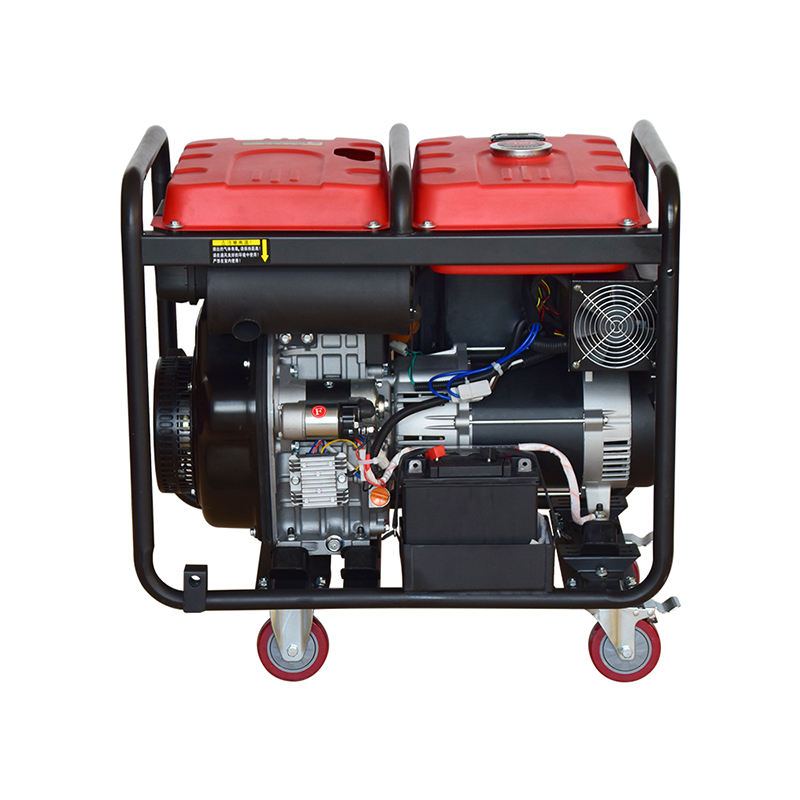

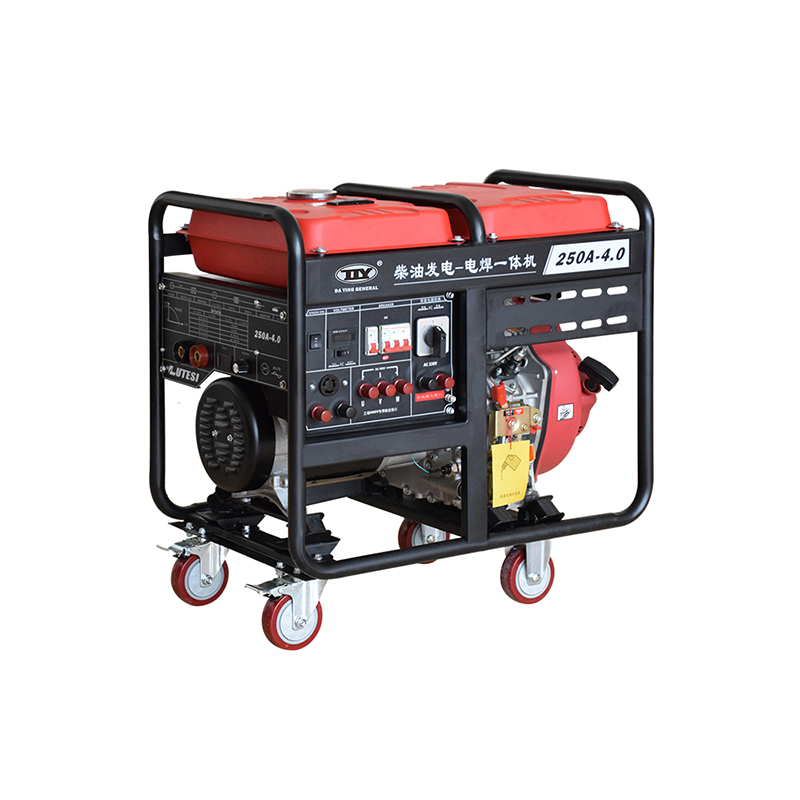

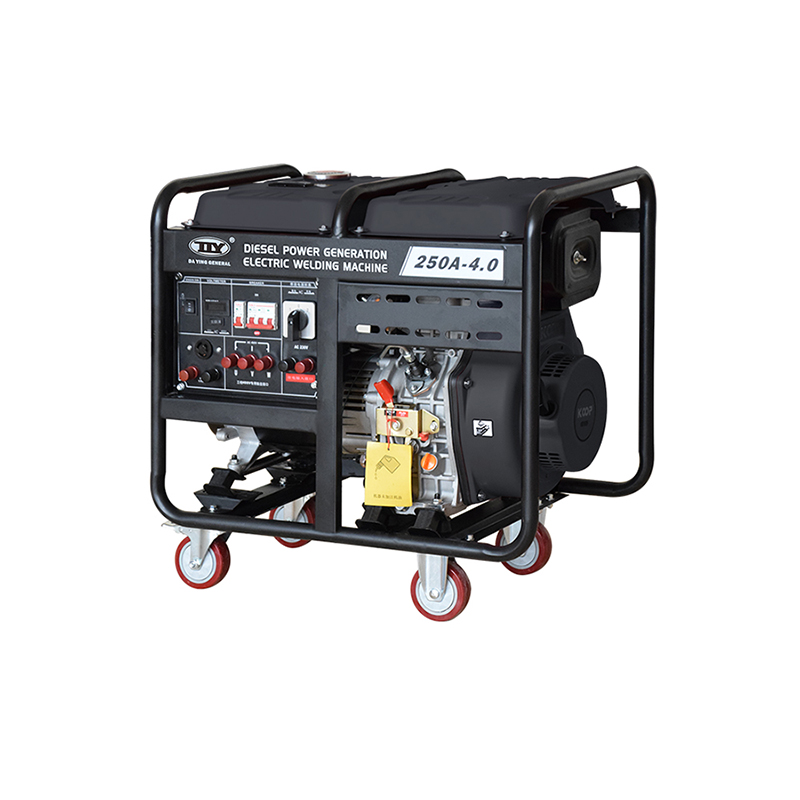

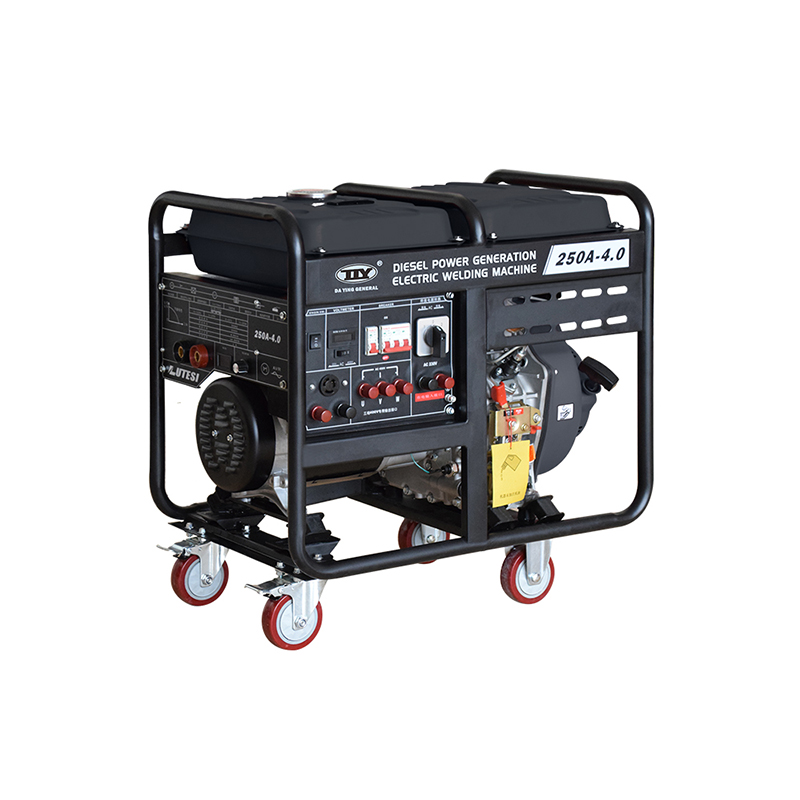

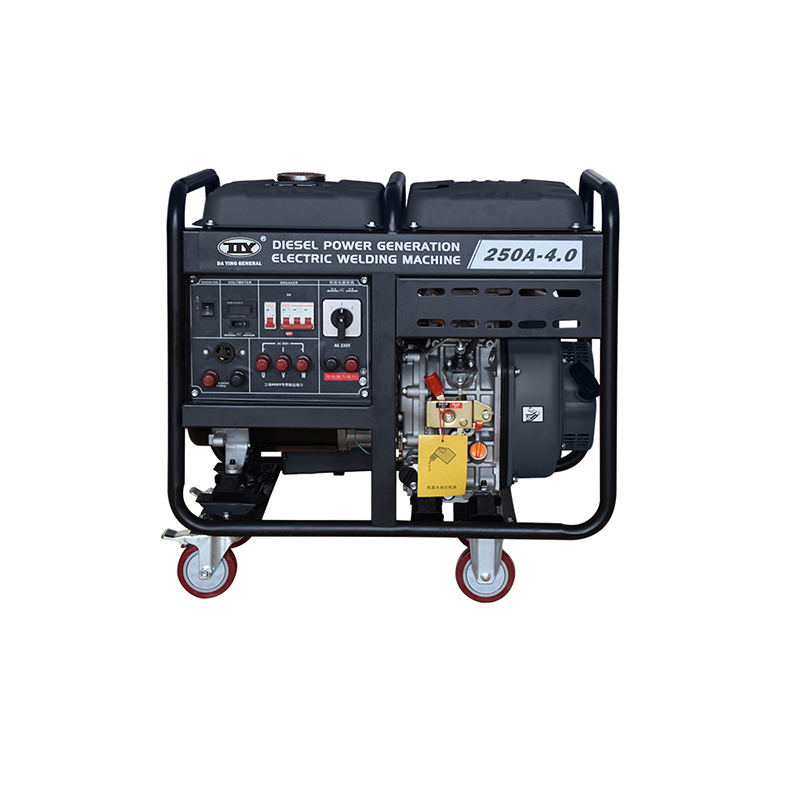

B model
DAIN
| Product Model | DYB190A-3.2 | DYB250A-4.0 | |
| Standard Model | 190A-3.2 | 250A-4.0 | |
| Welding Electrode Diameter (mm) | 1.6-4.0mm (Continuous Welding for 3.2mm) | 1.6-5.0mm (Continuous Welding for 4.0mm) | |
| Current Adjustment Range | 60-190A | 60-250A | |
| Current Adjustment Method | Manual Rotary Adjustment | ||
| No-Load Voltage (V) | 50-60 | ||
| Load Voltage (V) | 25-35 | ||
| Duty Cycle | 60% | ||
| Insulation Class | F | ||
| Rated Voltage (V) | 220 | 220/380 | |
| Rated Output Power (kW) COP | 5 | 8 | |
| Maximum Output Power (kW) | 5.5 | 8.5 | |
| Rated Current (A) | 21.5 | 34.5/14.5 | |
| Rated Frequency (Hz) | 50/60Hz (Optional) | ||
| Power Factor | 1 | 1.0/0.8 | |
| Fuel Tank Capacity (L) | 12 | ||
| Theoretical Operating Time (h) | 5~5.5 | 3.5~4 | |
| Operating Altitude (m) | ≤1000 | ||
| Operating Ambient Temperature (℃) | ≤40 | ||
| Phase | Single Phase | Single Phase / Three Phase / Equal Power | |
| Engine Model | C188FE | C192FE/C195FE | |
| Engine Displacement (cc) | 456 | 499/532 | |
| Bore × Stroke (mm) | 88×75 | 92×75/95×75 | |
| Rated Speed (r/min) | 3000/3600rpm (Optional) | ||
| Combustion Method | Compression-ignition direct injection | ||
| Fuel supply advance angle (degree) | 20±1 BTDC (Before Top Dead Center) | ||
| Starting Method | Recoil/Electric Integrated Start | ||
| Cooling System | Forced Air Cooling | ||
| Engine oil Capacity (L) | 1.65 | ||
| Fuel Consumption (g/(kW·h)) | ≤275 | ≤265 | |
| Accessory Configuration | Wheels + Handle (Optional) | ||
| Product Dimensions (mm) | 725×485×600 | ||
| Packaging Dimensions (mm) | 735×495×615 | ||
| Net Weight/Gross Weight (kg) | Manual Start | / | |
| Electric Start | 119/120 | 127/128 | |
| Weight with Wheels & Handle | 3 | ||
| Quantity per 40ft High Cube Container | 288 | ||
